Used accessories
For sales and further information, please call: +41 (0) 33 676 76 76
You can find an overview of our used accessories below:
Skyline support saddle type 2.5
| Item No. | Quantity on stock |
|---|---|
| G7.1000D24 | 10 pcs |
| G7.1000D28 | 1 pc |
| G7.1000D32 | 1 pc |
| Total Weight | 23 kg each |
| Prices | on request |
Description
The tried and tested Wyssen skyline support saddle has been used for several years worldwide. It has excelled through its extreme high strength and at the same time its light weight. The skyline support saddle type 2.5 is designed for a maximum saddle pressure of 6 t (safety factor of 4) and a max. cable deflection of 30°, which can be used for carriages 2.5 t, HY-2, HY-3, HY-4, slack-puller and the universal carriage. If the saddle pressure is greater or the cable deflection is more than 30° two saddles must be used together with the Wyssen support balance.
Main part for Skyline support saddle type 2.5
| Item No. | Quantity on stock |
|---|---|
| G7.1002D18 | 1 pc |
| G7.1002D24 | 4 pcs |
| G7.1002D30 | 1 pc |
| G7.1002D32 | 1 pc |
| Prices | on request |
Cable deflection roller (Roller-ø 240 mm)
| Item No. | G34.100B |
|---|---|
| Max. Cable-ø | ø 12 mm |
| Max. width | 36 mm |
| Material Plate & Roller | steel |
| Total Weight | 11.70 kg |
| Quantity on stock | 2 |
| Price | on request |
Description
The high quality Wyssen cable deflection rollers have been specially developed for skyline crane construction and operation, but today they are used for all types of hoisting and ground traction work. All our cable deflection rollers have a safety factor of 5. The models made of steel are particularly suitable for fast-running cables with a high load. The blocks made of aluminium/ plastic are on account of their light weight ideally suitable for assembly work (for manual operation only). The permanently lubricated ball-bearings and the high-strength materials guarantee a long service life. The rollers are equipped with cable derailment guards, so that derailing or any damage to the wire cable is not possible. The deflection rollers can be opened up in a hanging position on slings and the cable can be simply inserted. Various models are available in a wide range, so that e.g. sleeves or cable connections can be drawn through when threading the cable. Individual spares are available for all rollers
Cable deflection roller (Roller-ø 320 mm)
| Item No. | G34.200B |
|---|---|
| Max. Cable-ø | ø 16 mm |
| Max. width | 50 mm |
| Material Plate & Roller | steel |
| Total Weight | 31 kg |
| Quantity on stock | 8 |
| Price | on request |
Description
The high quality Wyssen cable deflection rollers have been specially developed for skyline crane construction and operation, but today they are used for all types of hoisting and ground traction work. All our cable deflection rollers have a safety factor of 5. The models made of steel are particularly suitable for fast-running cables with a high load. The blocks made of aluminium/ plastic are on account of their light weight ideally suitable for assembly work (for manual operation only). The permanently lubricated ball-bearings and the high-strength materials guarantee a long service life. The rollers are equipped with cable derailment guards, so that derailing or any damage to the wire cable is not possible. The deflection rollers can be opened up in a hanging position on slings and the cable can be simply inserted. Various models are available in a wide range, so that e.g. sleeves or cable connections can be drawn through when threading the cable. Individual spares are available for all rollers
Used accessories

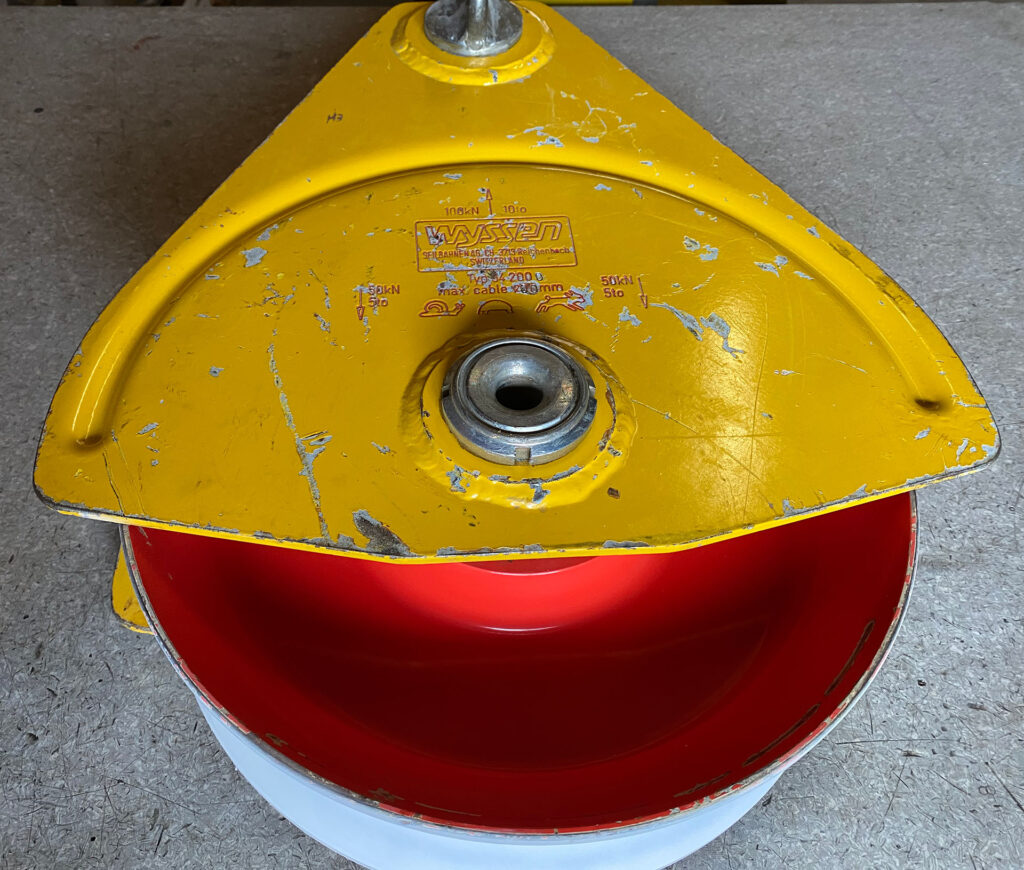

Cable deflection roller (Roller-ø 320 mm)
| Item No. | G34.2000 |
|---|---|
| Max. Cable-ø | ø 60 mm |
| Max. width | 100 mm |
| Material Plate & Roller | steel |
| Total Weight | 45 kg |
| Quantity on stock | 6 |
| Price | on request |
Description
The high quality Wyssen cable deflection rollers have been specially developed for skyline crane construction and operation, but today they are used for all types of hoisting and ground traction work. All our cable deflection rollers have a safety factor of 5. The models made of steel are particularly suitable for fast-running cables with a high load. The blocks made of aluminium/ plastic are on account of their light weight ideally suitable for assembly work (for manual operation only). The permanently lubricated ball-bearings and the high-strength materials guarantee a long service life. The rollers are equipped with cable derailment guards, so that derailing or any damage to the wire cable is not possible. The deflection rollers can be opened up in a hanging position on slings and the cable can be simply inserted. Various models are available in a wide range, so that e.g. sleeves or cable connections can be drawn through when threading the cable. Individual spares are available for all rollers

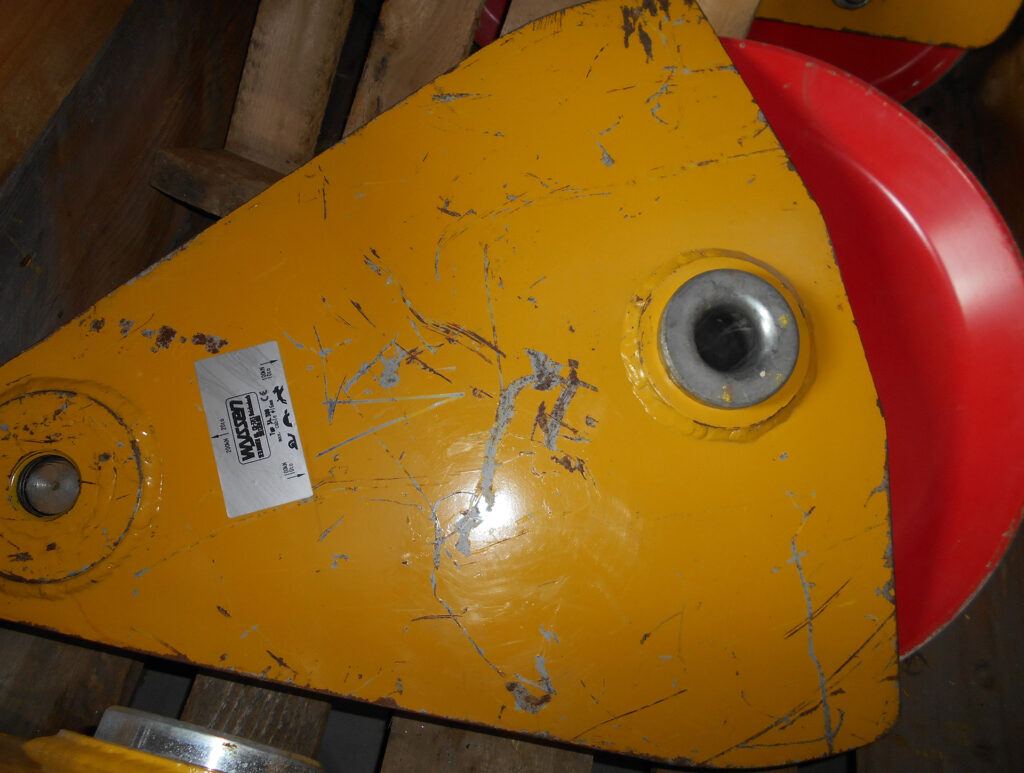

Cable deflection rollers (Roller-ø 400 mm)
| Item No. | G34.300B |
|---|---|
| Max. Cable-ø | ø 24 mm |
| Max. width | 70 mm |
| Material Plate & Roller | steel |
| Total Weight | 59 kg |
| Quantity on stock | 3 |
| Price | on request |
Description
The high quality Wyssen cable deflection rollers have been specially developed for skyline crane construction and operation, but today they are used for all types of hoisting and ground traction work. All our cable deflection rollers have a safety factor of 5. The models made of steel are particularly suitable for fast-running cables with a high load. The blocks made of aluminium/ plastic are on account of their light weight ideally suitable for assembly work (for manual operation only). The permanently lubricated ball-bearings and the high-strength materials guarantee a long service life. The rollers are equipped with cable derailment guards, so that derailing or any damage to the wire cable is not possible. The deflection rollers can be opened up in a hanging position on slings and the cable can be simply inserted. Various models are available in a wide range, so that e.g. sleeves or cable connections can be drawn through when threading the cable. Individual spares are available for all rollers
Used accessories

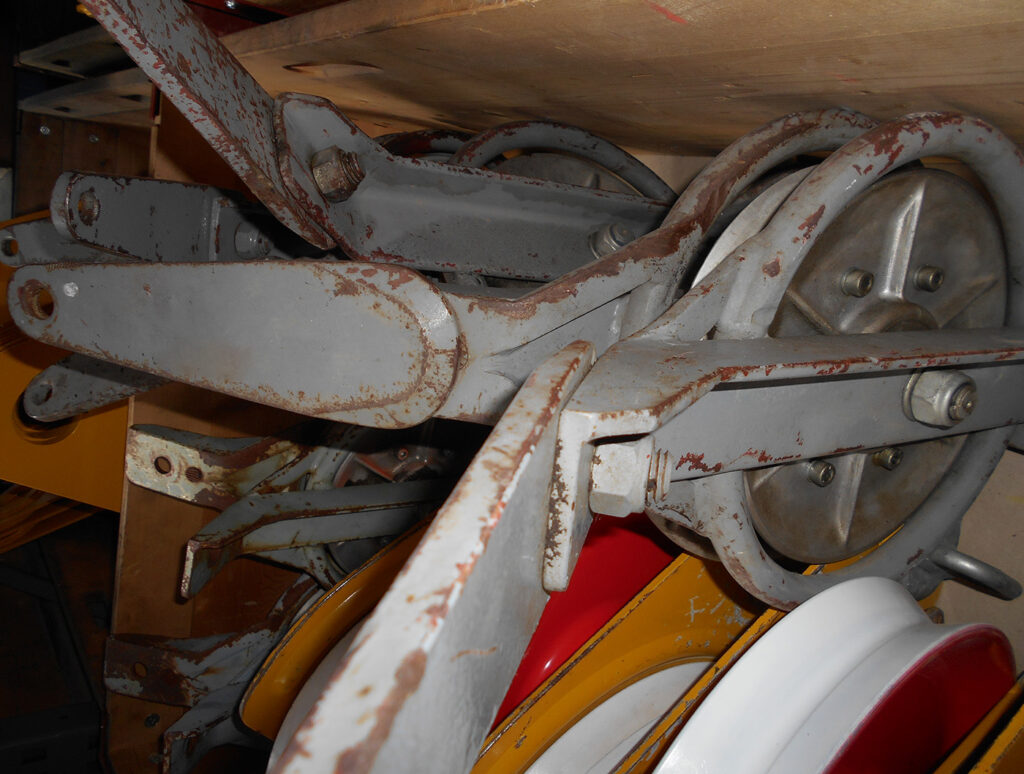

Mainline idler pulley
| Item No. | G9.100 |
|---|---|
| Type | 2.5 / 5 |
| Roller-ø | 173 mm |
| Total Weight | 16.20 kg |
| Quantity on stock | 5 |
| Price | on request |
Description
The mainline idler pulley is used where the mainline scrapes heavily against the ground. Heavy wear and tear on the mainline can thus be avoided. The mainline idler pulley is suspended with two arrestor cables on the supports and supporting mast and fixed or bolted to the ground with an anchor cable.

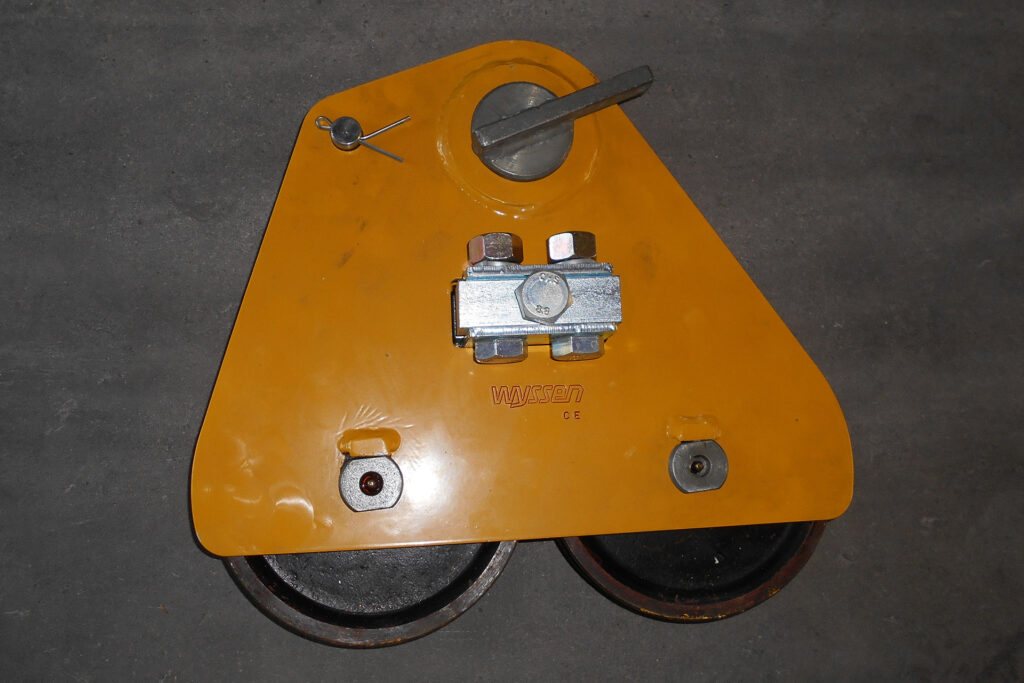

Terminal mast block with clamp for type 2.5
| Item No. | G27.300B |
|---|---|
| Type for carriage | 2.5, incl. clamp HY-2, HY-4, Slackpuller, Universal, LW 2.5 t |
| Max. Cable-ø | 24 mm |
| Max. load | 15 t |
| Total Weight | 23.60 kg |
| Quantity on stock | 1 pc |
| Price | on request |
Description
The terminal mast block is used on the side of the skyline tension, so that the skyline slips optimally through the terminal mast when under tension. The skyline must not move on the rollers when the installation is in operation. If such a risk exists, the skyline is fixed after assembly and running in of the installation with the cable clamp to the roller pair, so that a cable breakage can be prevented. If the skyline is fixed with a cable clamp, the terminal mast block must be suspended on a correspondingly long cable sling.
Used accessories
Terminal mast block with clamp for type 5
| Item No. | G27.400A |
|---|---|
| Type for carriage | 5, incl. clamp HY-7, MSK 2, Slackpuller, Universal, LW 5 t |
| Max. Cable-ø | 32 mm |
| Max. load | 25 t |
| Total Weight | 46.75 kg |
| Quantity on stock | 1 pc |
| Price | on request |
Description
The terminal mast block is used on the side of the skyline tension, so that the skyline slips optimally through the terminal mast when under tension. The skyline must not move on the rollers when the installation is in operation. If such a risk exists, the skyline is fixed after assembly and running in of the installation with the cable clamp to the roller pair, so that a cable breakage can be prevented. If the skyline is fixed with a cable clamp, the terminal mast block must be suspended on a correspondingly long cable sling.

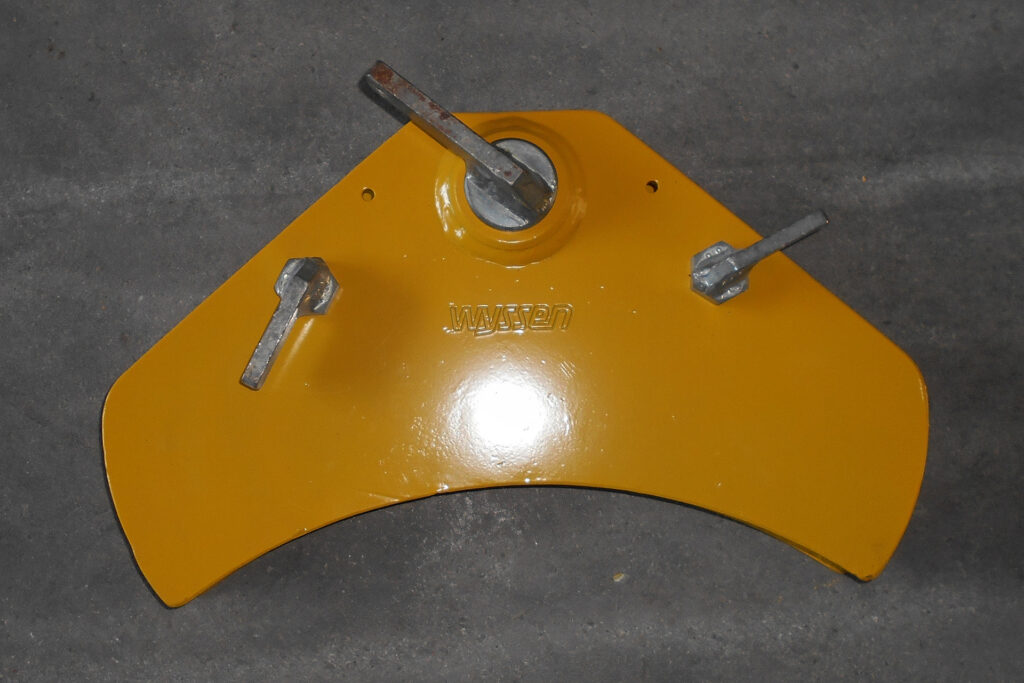

Spar tree saddle
| Item No. | G27.800 |
|---|---|
| Type for carriage | 2.5 HY-2, HY-4, Slackpuller, Universal, LW 2.5 t |
| Max. Cable-ø | 28 mm |
| Max. load | 15 t |
| Total Weight | 7.60 kg |
| Quantity on stock | 3 pcs |
| Price | on request |
Description
The spar tree saddle serves to hold up the skyline at the terminal mast. It is used on the side where the skyline is anchored only and not under tension. Compared to conventional skyline support saddles, the spar tree saddle features are the light weight and cable deflections up to 60°
Used accessories

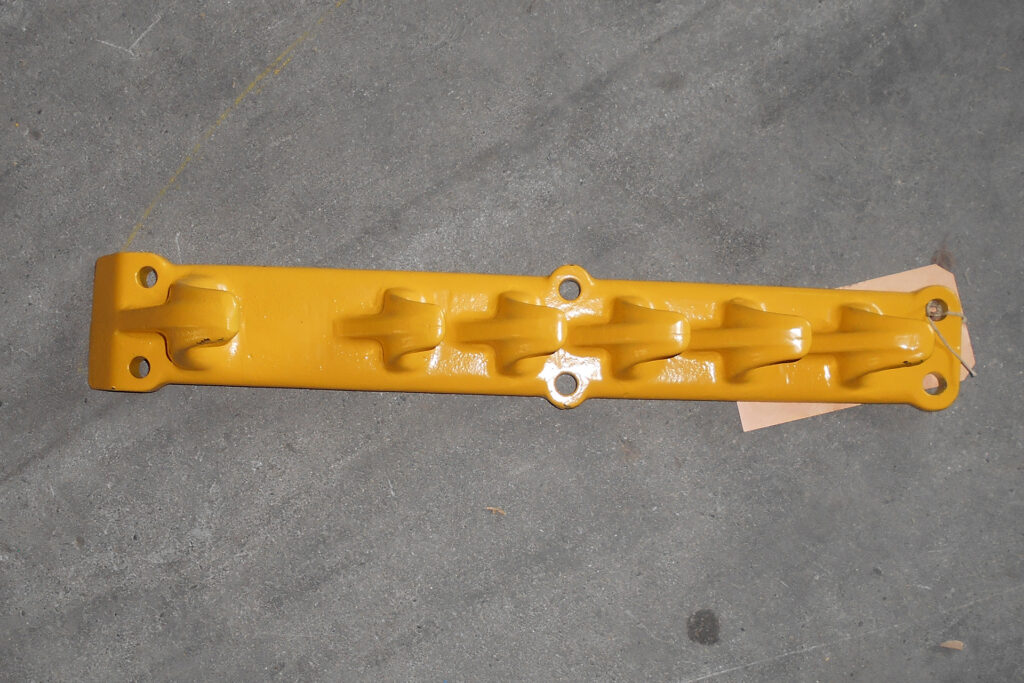

Hook plate 2.5 t
| Item No. | G74.101 |
|---|---|
| Cable ø | 24 mm |
| Quantity on stock | 2 pcs |
| Price | on request |

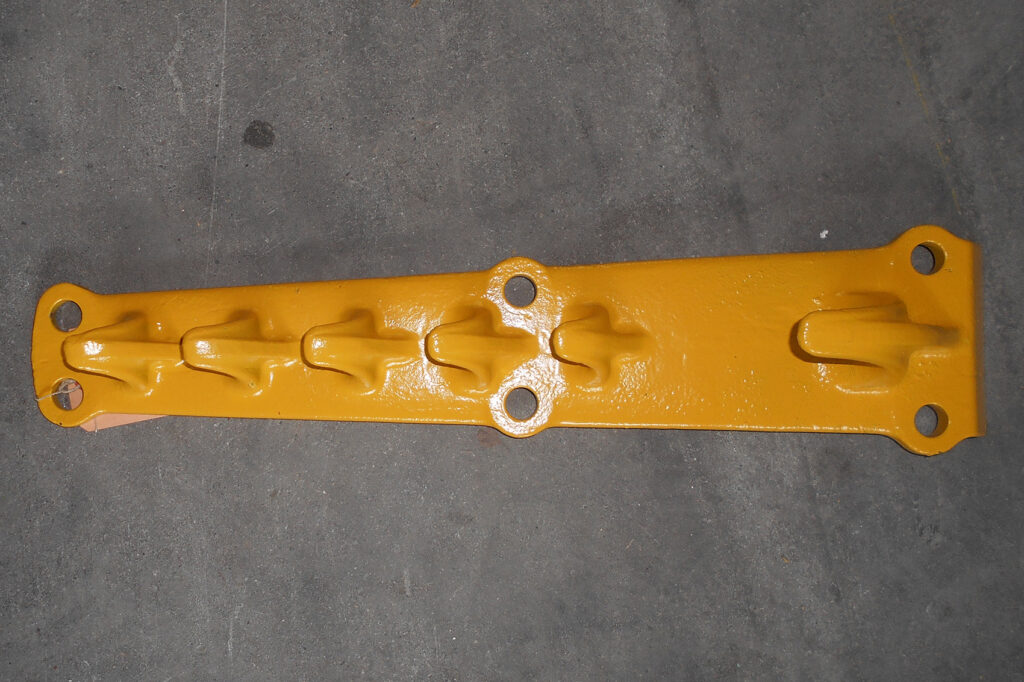

Hook plate 5 t
| Item No. | G74.201 |
|---|---|
| Cable ø | 32 mm |
| Quantity on stock | 1 pc |
| Price | on request |
Used accessories
Special shakles
| Item No. | G7.1100 |
|---|---|
| Type - guy line / pre-pulling cable | (A) 2.5 - steel / steel |
| Total Weight | 6.68 kg |
| Quantity on stock | 3 pcs |
| Price | on request |
Description
The special shackle is assembled on the clamp of the skyline support saddle and is used for securing the raising and pulling cables and also tree slings, which are simply assembled and prepared on the ground. The skyline support saddle can subsequently be raised together with the cables, fixed around the tree and then pulled forward. The articulated shackle greatly facilitates skyline support saddle assembly of supports. There is also a special version for nylon ropes and nylon slings.

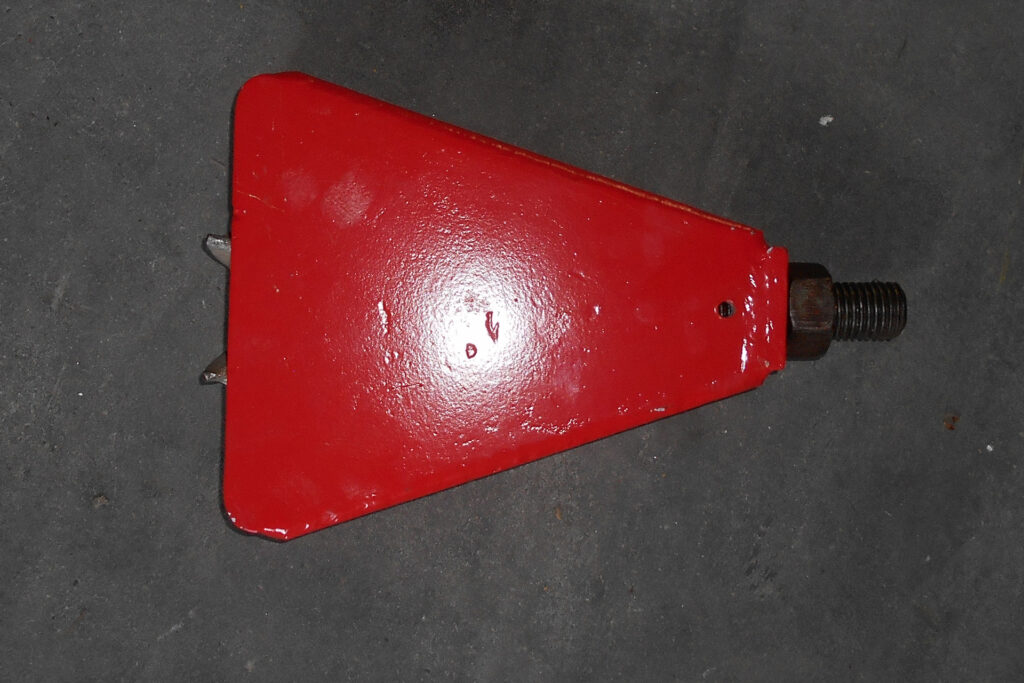

Cable tensioner (Type 2.5)
| Item No. | G73.500 |
|---|---|
| for cable ø | 8 - 12 mm |
| Quantity on stock | 4 pcs |
| Price | on request |
Description
The cable tensioner is employed on the cable winch anchor cable. The anchor cable can be tensioned as desired with the adjusting screw and the cable winch aligned exactly. Correction and re-alignment of the cable winch is possible at any time with little effort.
Used accessories

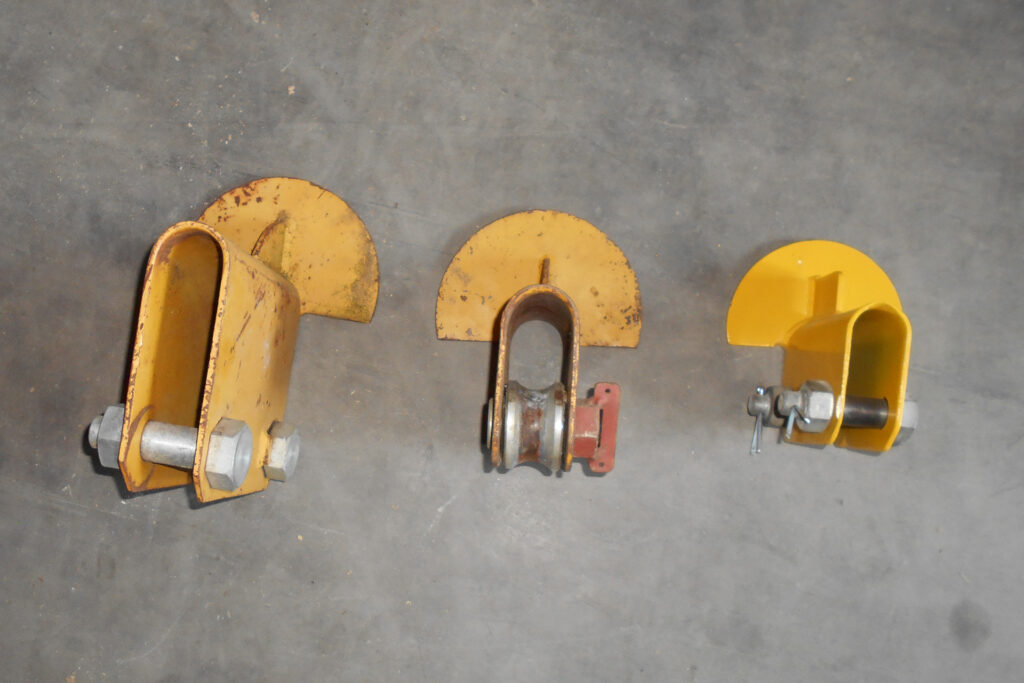

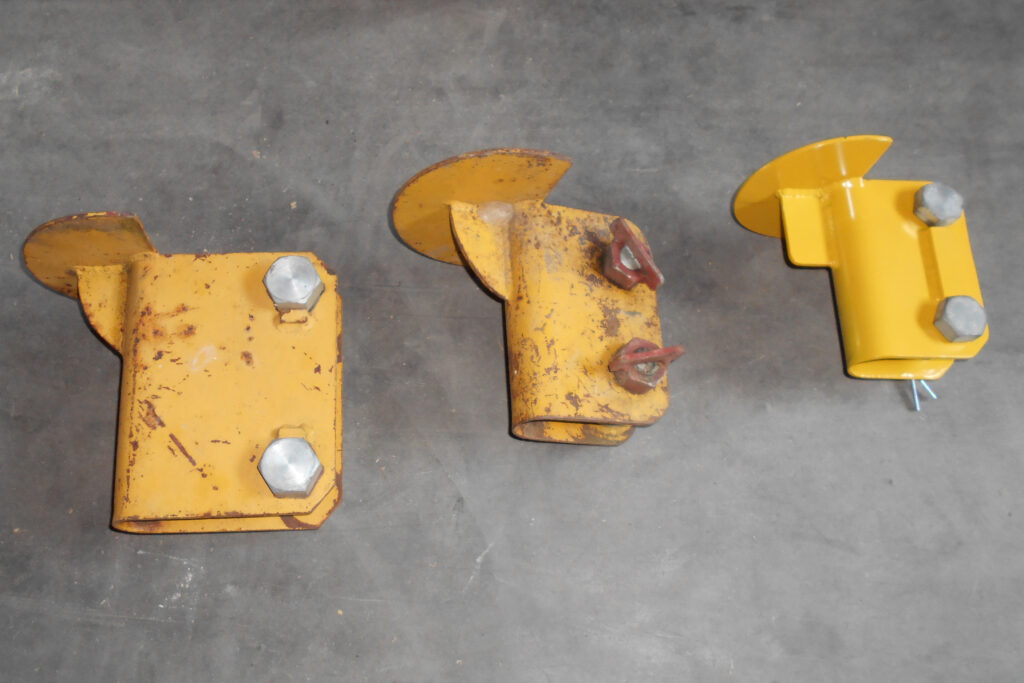

Mounting bracket for Triple Pulley Blocks
| Item No. | Quantity on stock |
|---|---|
| G.9240 for type 2.5 t | 3 pcs |
| G.9240 for type 5 t | 1 pc |
| G.9240 for type 10 t | 1 pc |
| Prices | on request |
Description
The triple pulley blocks are suspended on the terminal mast or on the skyline to guide the mainline. In order to guarantee correct winding onto the winch drum, the roller must be placed at least 30 times the drum width away from the cable winch. If the cable winch is closer to the terminal mast, the triple pulley block is hung onto the skyline and can be anchored on the ground.

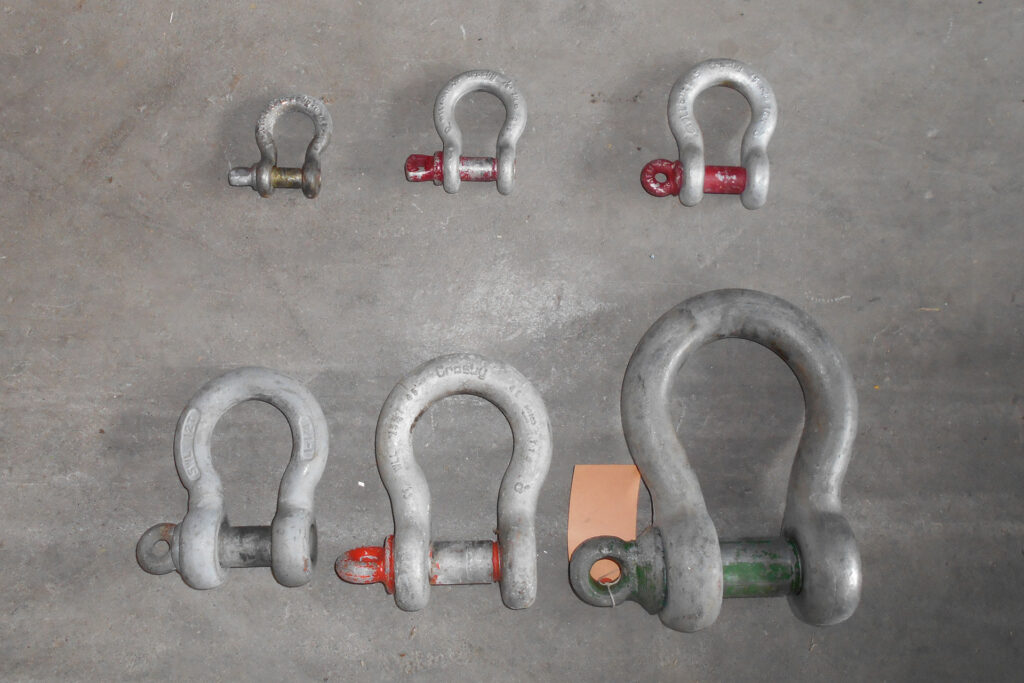

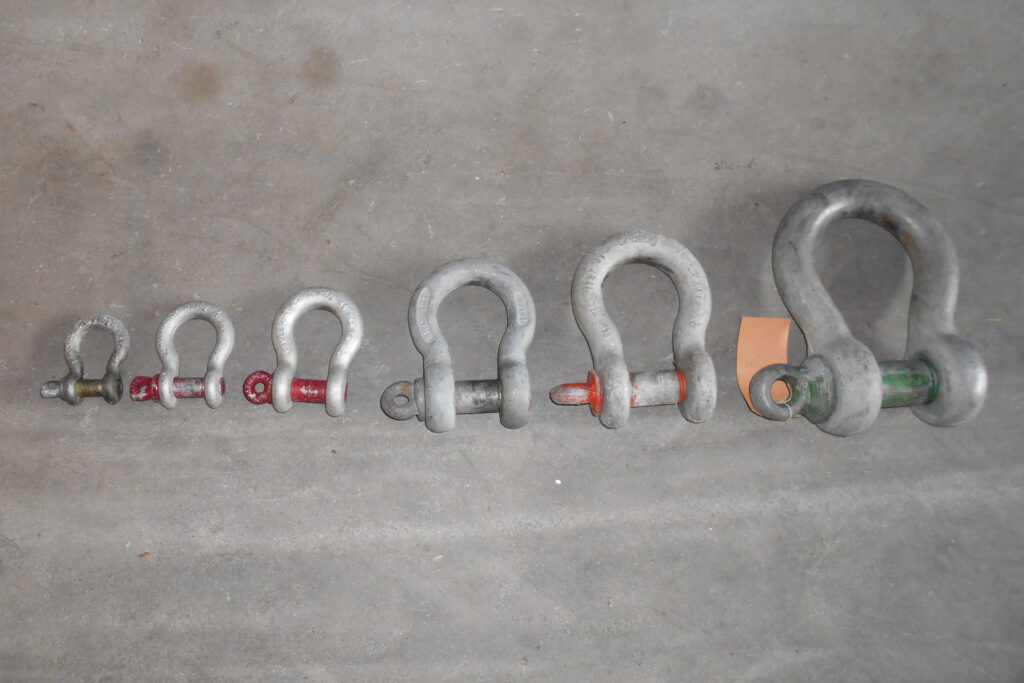

Various shackles
| Item No. | Type | Load capacity | On stock | Price |
|---|---|---|---|---|
| G5445-3.25 | 5/8" | 3'250 kg | 3 pcs | on req. |
| G5445-6.5 | 7/8" | 6’500 kg | 9 pcs | on req. |
| G5445-4.75 | 3/4" | 4’750 kg | 2 pcs | on req. |
| G5445-12 | 1 1/4" | 12’000 kg | 1 pc | on req. |
| G5445-13.5 | 1 3/8" | 13’500 kg | 4 pcs | on req. |
| G5445-25 | 1 3/4" | 25’000 kg | 4 pcs | on req. |
Description
The forged and hardened shackles are known for their very high quality. (Safety factor: 6) Together with the suitable Wyssen anchor rollers the shackles are used for guy lines and anchor cables. Details such as allowed loading, size, manufacturer’s name and CE sign are marked on the loop.
Used accessories

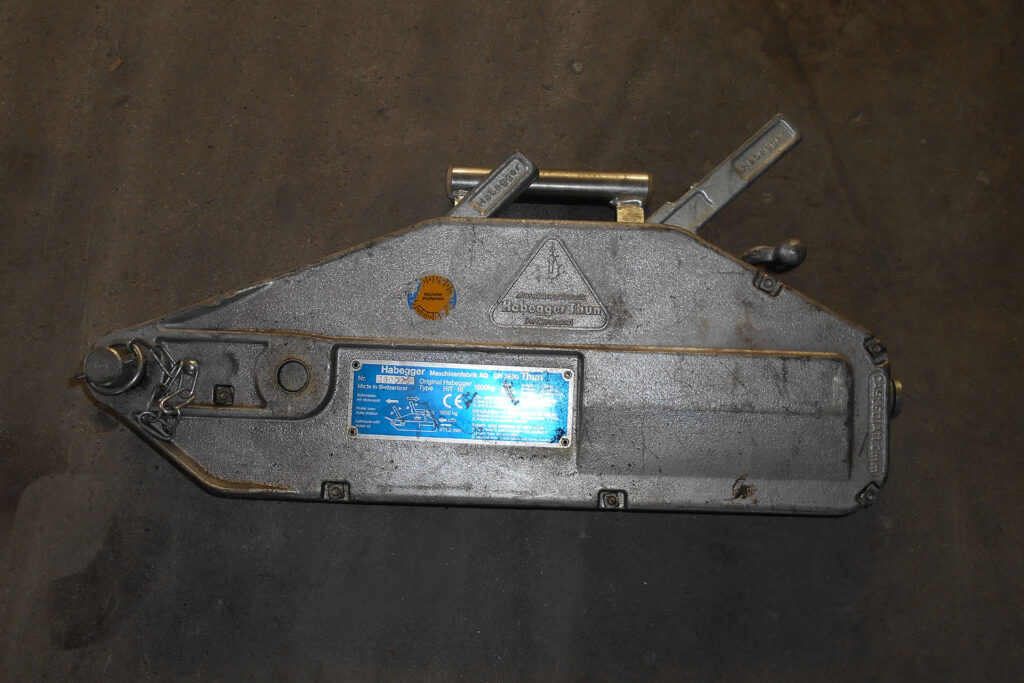

Habegger Hit wire rope hoist without cable
| Item No. | G5431H16 |
|---|---|
| Tractive force | 1'600 kg |
| Cable-ø | 11.2mm |
| Total Weight | 13.70 kg |
| Price | On request |
Description
The high quality original Habegger wire rope hoist with alloyed light-metal housing is available for maximum tractive forces between 600 kg and 3200 kg. Overloading is protected by means of shear pin and a suitable cable designed for the wire rope hoist offers maximum safety. The Habegger wire rope hoist is used world-wide in the widest applications, and also in the cableway sector. We also offer upgrading for the hydraulic drive.

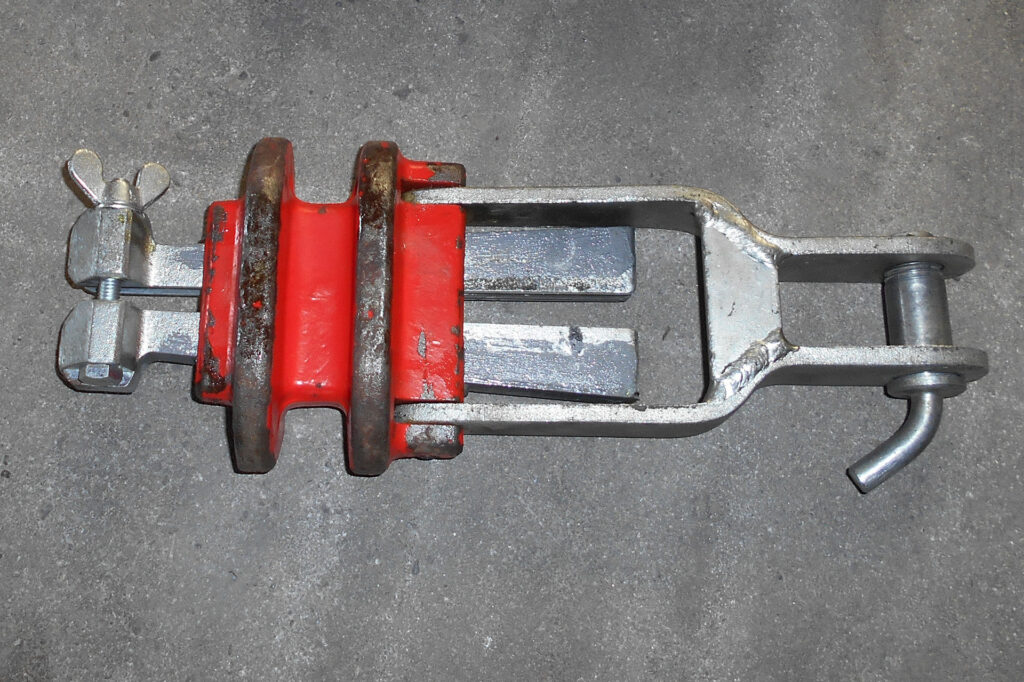

Wyssen automatic clamp
| Item No. | G35.4100D10-12 |
|---|---|
| Max. tension | 1'600 kg |
| for cable-ø | 10 - 12 mm |
| Total Weight | 3.30 kg |
| Quantity on stock | 1 pc |
| Price | on request |
Description
The automatic clamp with a single attachment bolt, selfclamping clamping jaws and a special groove is used for pulling, lifting and securing steel wire cables. In the aerial cableway sector, the automatic clamp is often used for pre-tensioning of support guys. Pre-clamping with wing nuts causes the clamps to slide automatically into the wedging, so that depending on the traction, the required clamping pressure is generated for a secure clamping. In case of impact, the cable is prevented from jumping out.

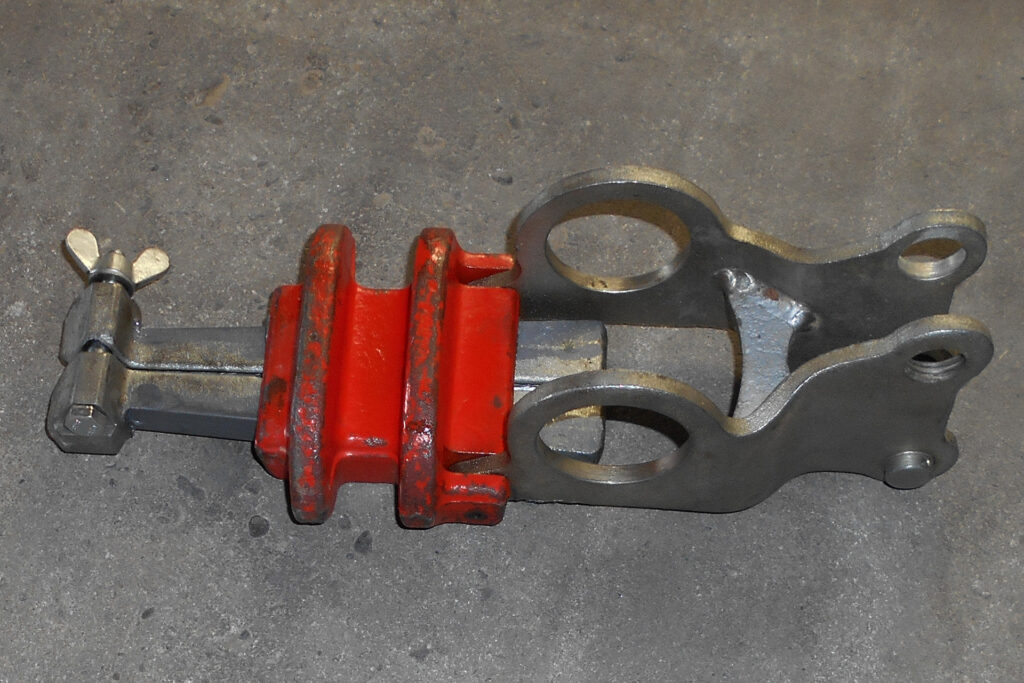

Wyssen automatic clamp (two attachment bolts)
| Item No. | G35.4000D08-10 |
|---|---|
| Max. tension | 1'600 kg |
| for cable-ø | 8-10 mm |
| Total Weight | 3.70 kg |
| Quantity on stock | 1 pc |
| Price | on request |
Description
The automatic clamp with two attachment bolts is practically identical to the standard automatic clamp. This automatic clamp is equipped with two bolts and has additionally a hole in the bracket, through which a bar / piece of wood can be inserted to prevent twisting of the automatic clamp. One bolt is used as a fixation when tightening and with the other bolt a second fastening can be clipped in, so that the fixation of the tightening bolt can be easily released.

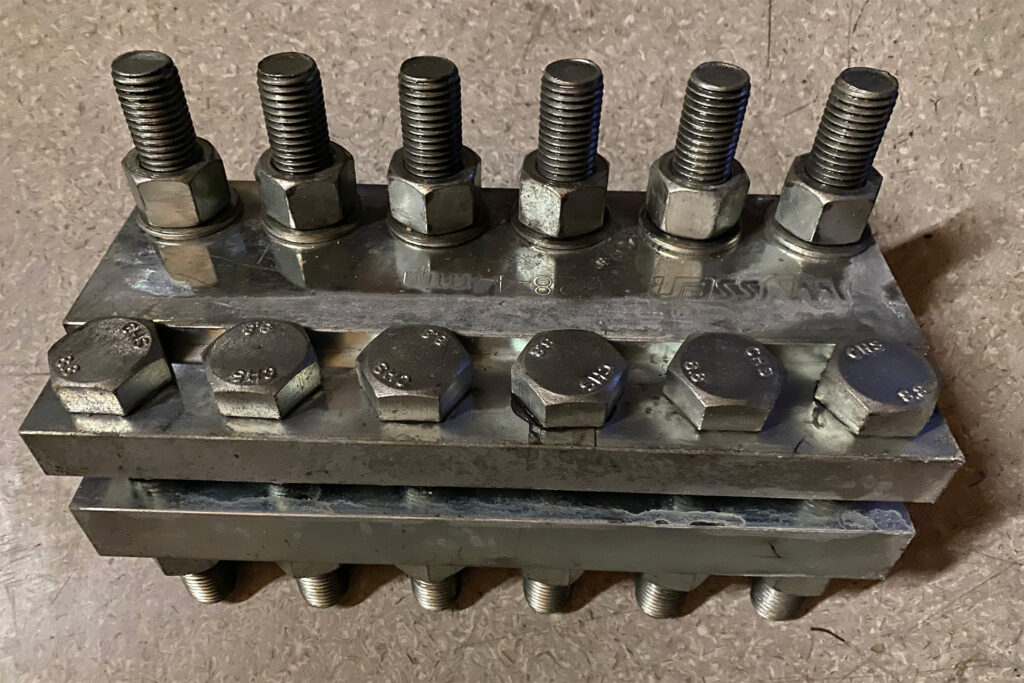

Wyssen Plate clamp to clamping set ø 28-44 mm
| Item No. | G8.200D28-44 |
|---|---|
| Total Weight | 16.20 kg |
| Quantity on stock | 3 pcs |
| Price | on request |
Description
The Wyssen plate clamp functions as a guy clamp or security clamp. The anchor cable is fixed on both lugs with a shackle on each one. The Wyssen plate clamp is also available without lugs, which was specially manufactured for the automatic Wyssen skyline clamp. This plate clamp functions to secure the steel wire cable and prevents slippage or movement of the outermost position for locked-coil cables.

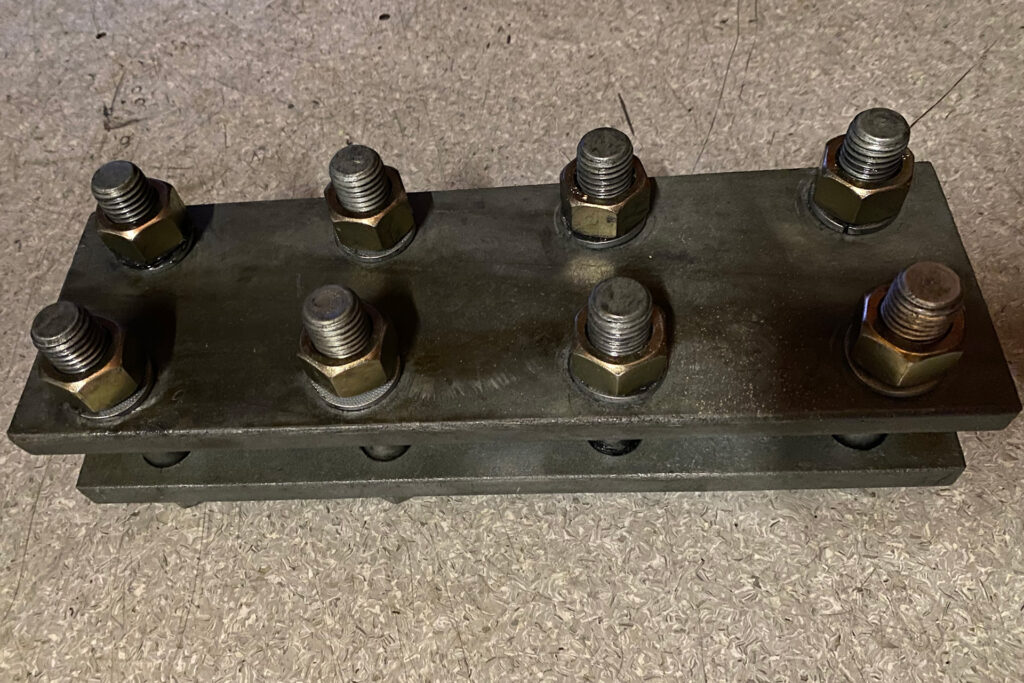

Wyssen Plate clamp for cable crane 5t
| Item No. | G8.200 |
|---|---|
| Quantity on stock | 3 pcs |
| Price | on request |
Description
The Wyssen plate clamp functions as a guy clamp or security clamp. The anchor cable is fixed on both lugs with a shackle on each one. The Wyssen plate clamp is also available without lugs, which was specially manufactured for the automatic Wyssen skyline clamp. This plate clamp functions to secure the steel wire cable and prevents slippage or movement of the outermost position for locked-coil cables.

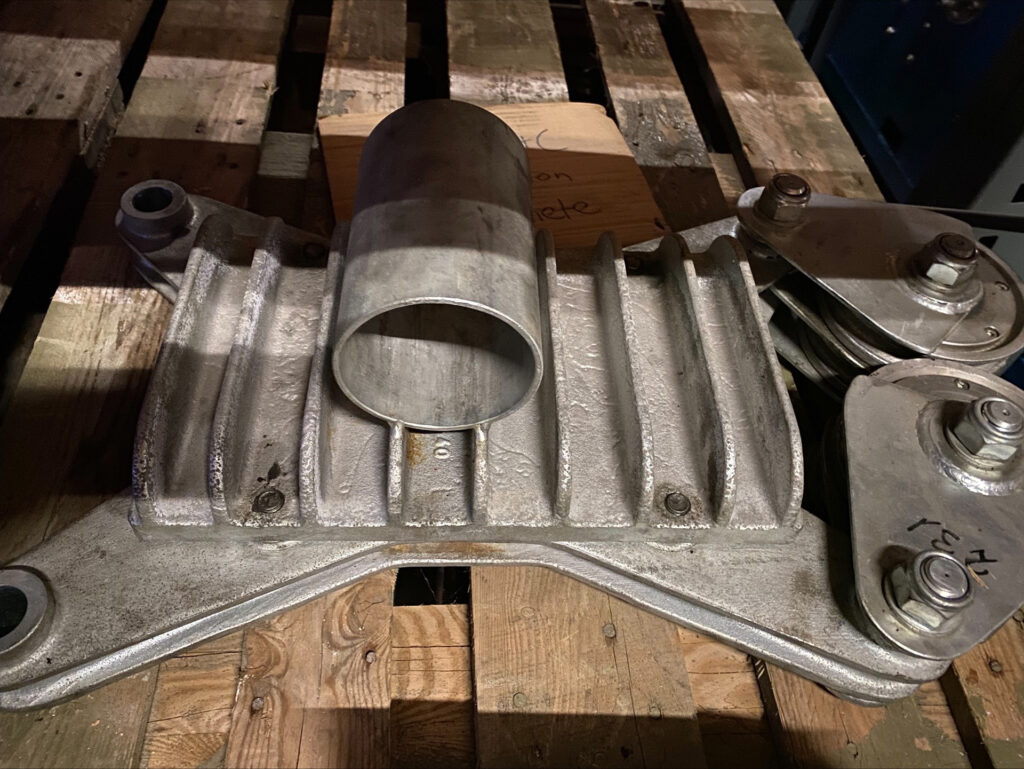

Automatic Skyline clamp 22t and 32t
| Item No. | Tension capacity* | Total Weight | On stock | Prices |
|---|---|---|---|---|
| G25.2200B | 32 t | 98 kg | 1 pc | on request |
| G25.2200C | 32 t | 110 kg | 1 pc | on request |
Description
The automatic skyline clamp is used predominantly for rapid and secure tensioning of skylines. It may be used for most types of steel wire cables, of ø 12 mm to 60 mm with a maximum tension capacity of up 48 t. Clamping is automatically effected, without any elaborate bolting. Clamping jaws are available for different cable diameters and all types can be exchanged. For odd cable diameters the next largest size of clamp diameter must be used.
*corresponds max. tensioning force

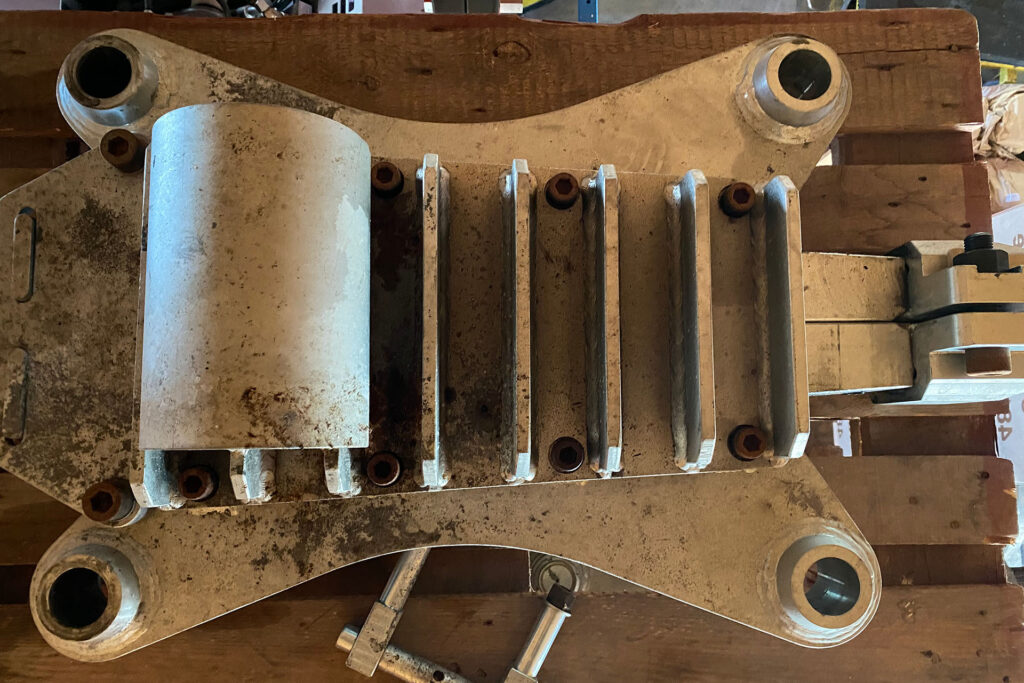

Automatic skyline clamp 48t
| Item No. | Tension capacity* | Total Weight | On stock | Prices |
|---|---|---|---|---|
| G25.400B | 48 t | 295 kg | 1 pc | on request |
| G25.400C | 48 t | 330 kg | 1 pc | on request |

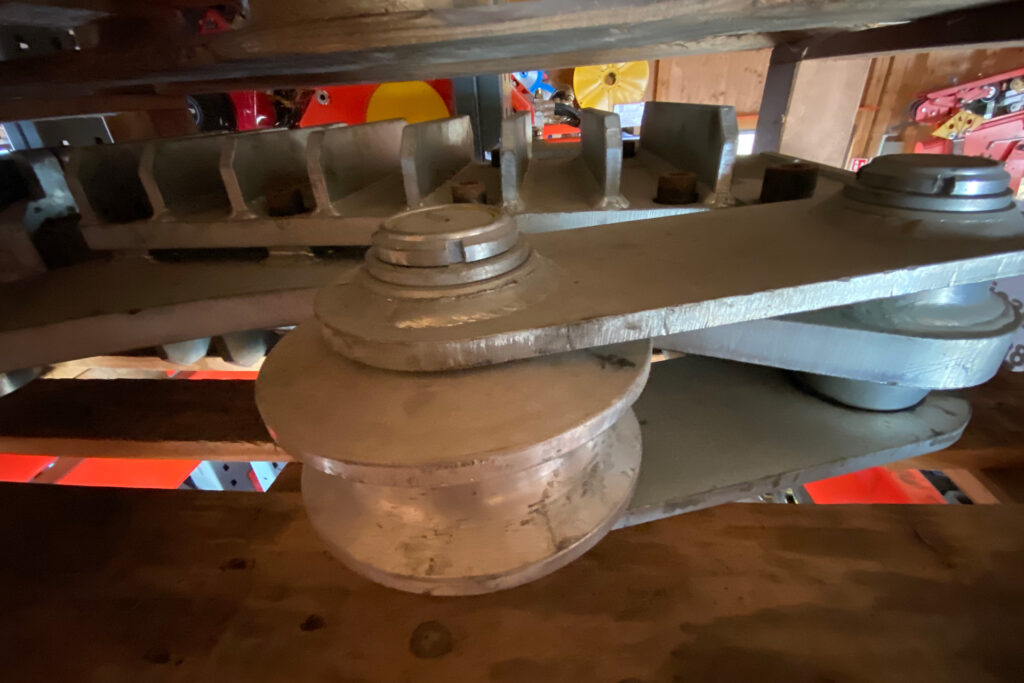

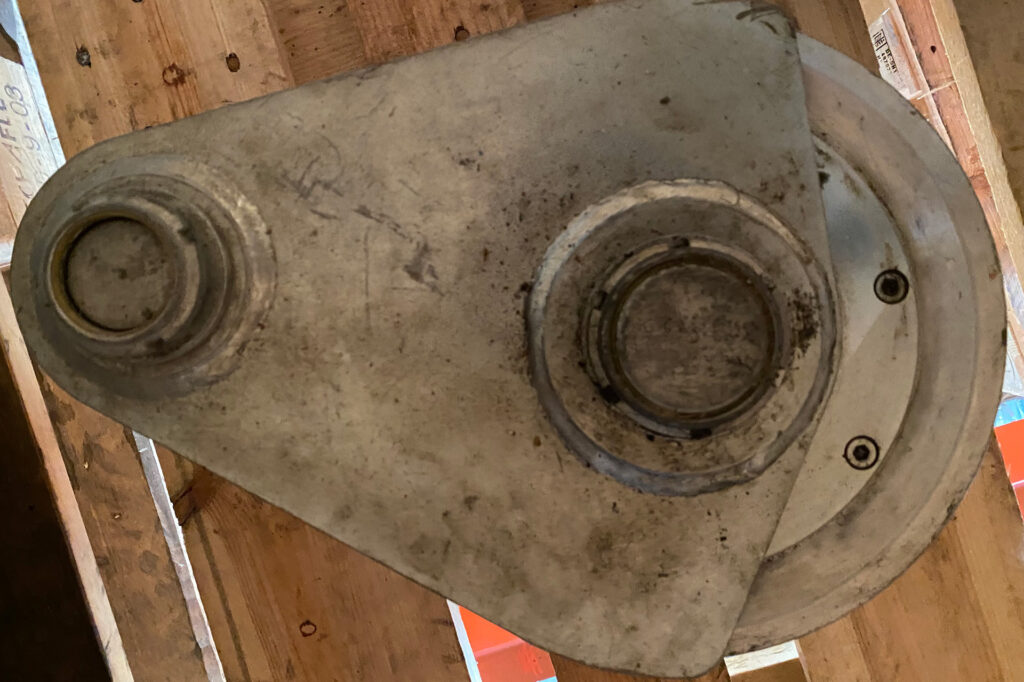

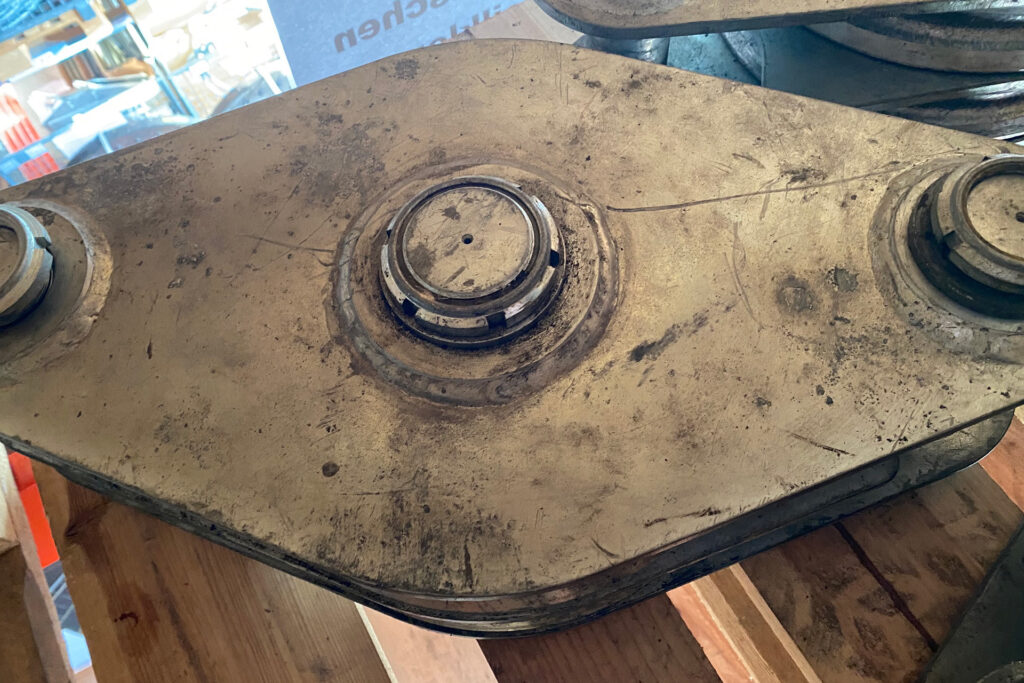

| G25415D44 - clamping jaws 44mm* | - | 34 kg | 4 pcs | on request |
*Clamping jaws are 44mm,can also be customized as required
Description
The automatic skyline clamp is used predominantly for rapid and secure tensioning of skylines. It may be used for most types of steel wire cables, of ø 12 mm to 60 mm with a maximum tension capacity of up 48 t. Clamping is automatically effected, without any elaborate bolting. Clamping jaws are available for different cable diameters and all types can be exchanged. For odd cable diameters the next largest size of clamp diameter must be used.
*corresponds max. tensioning force

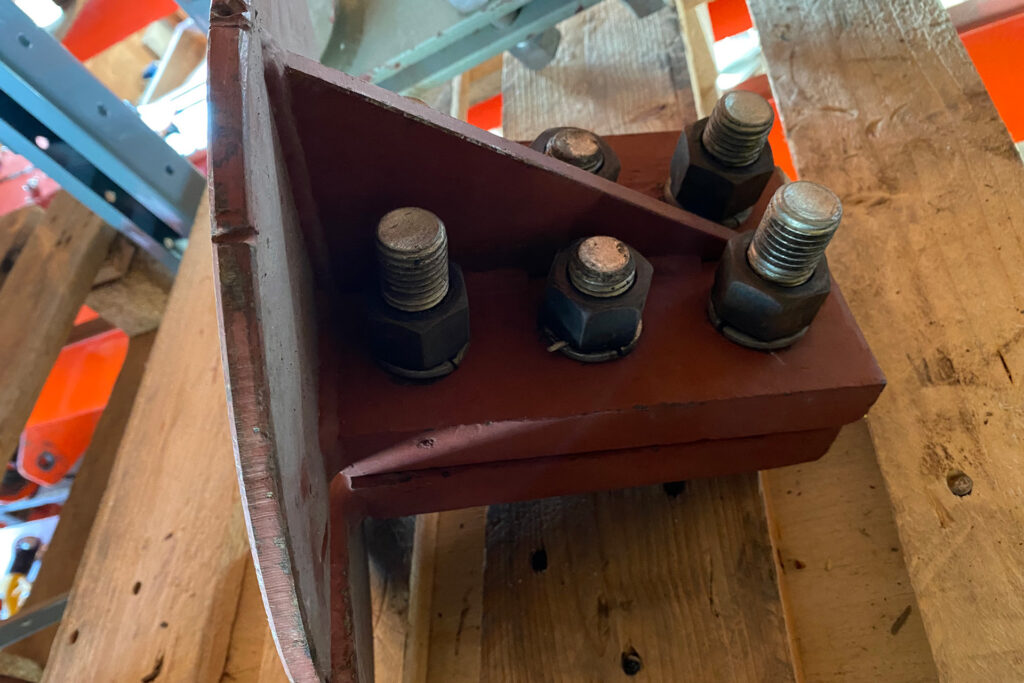

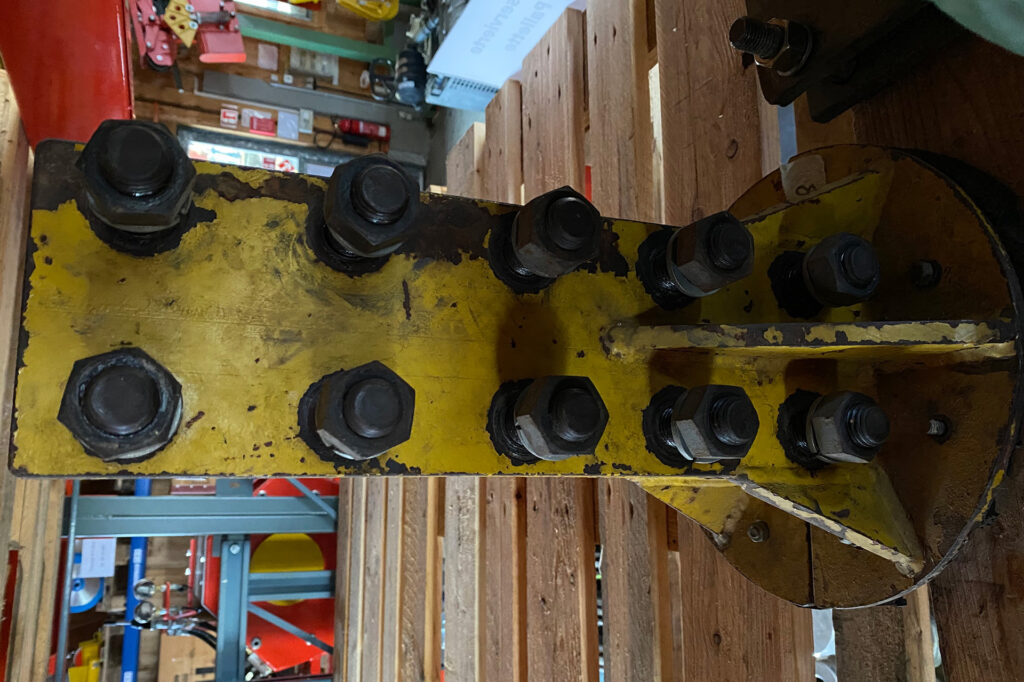

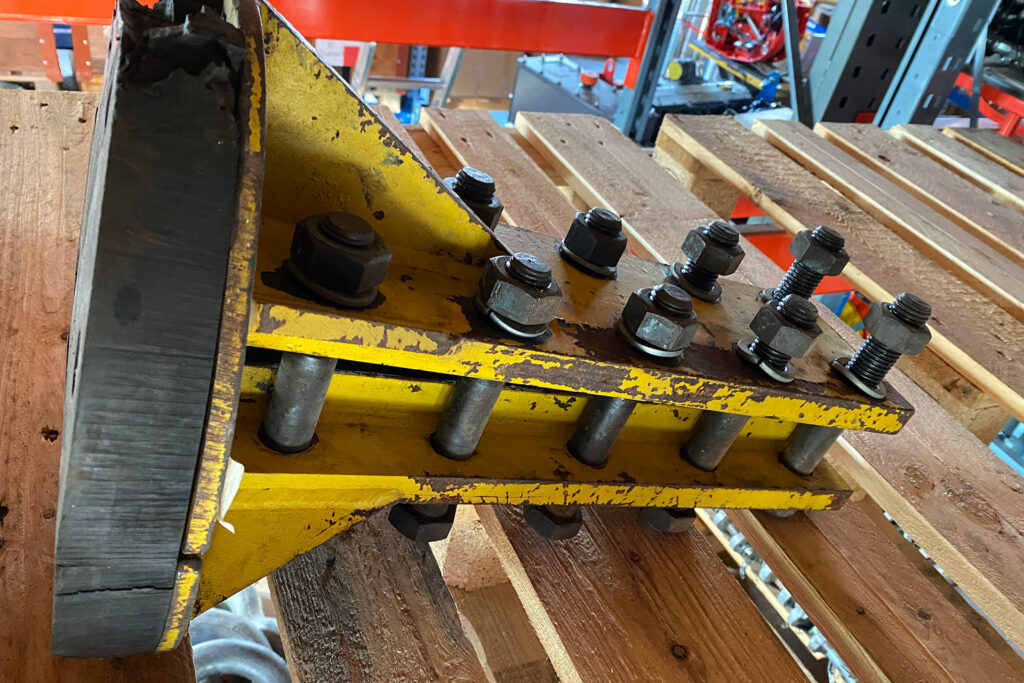

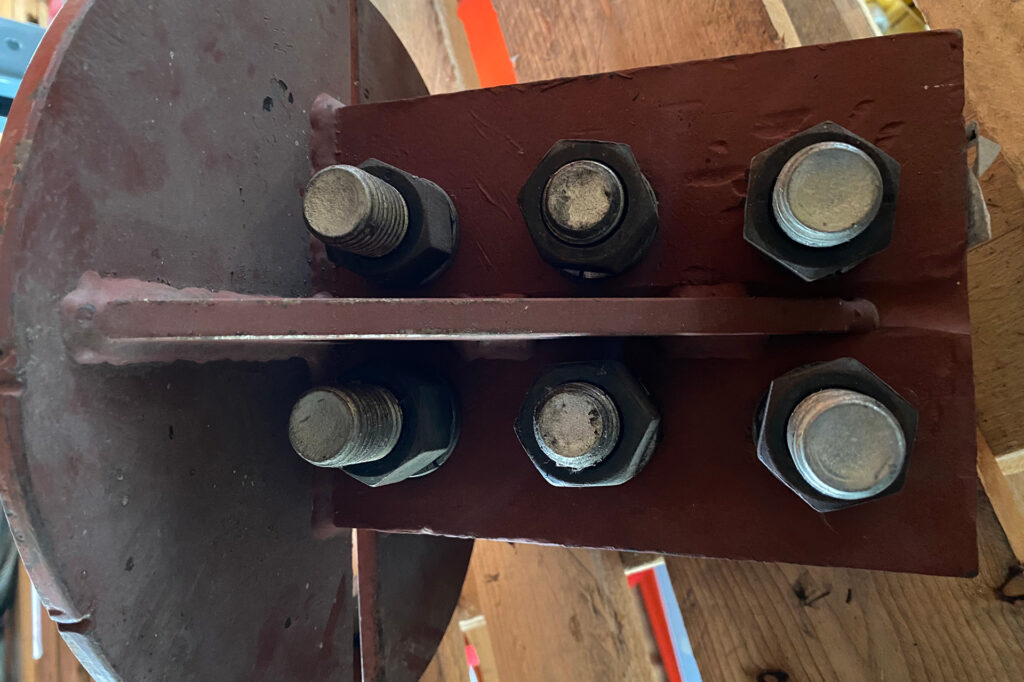

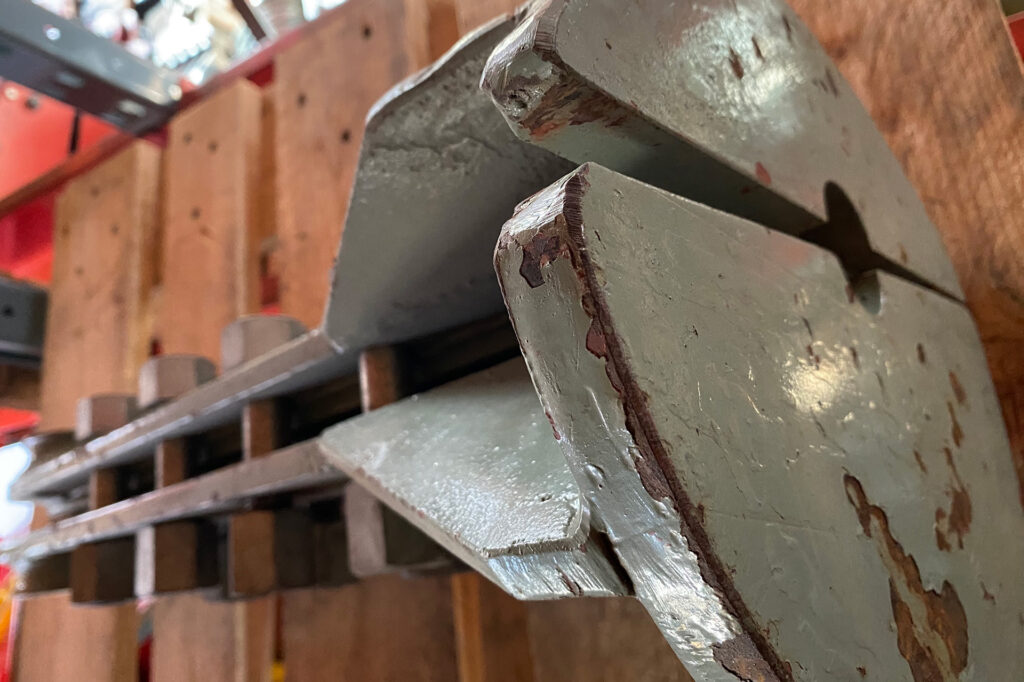

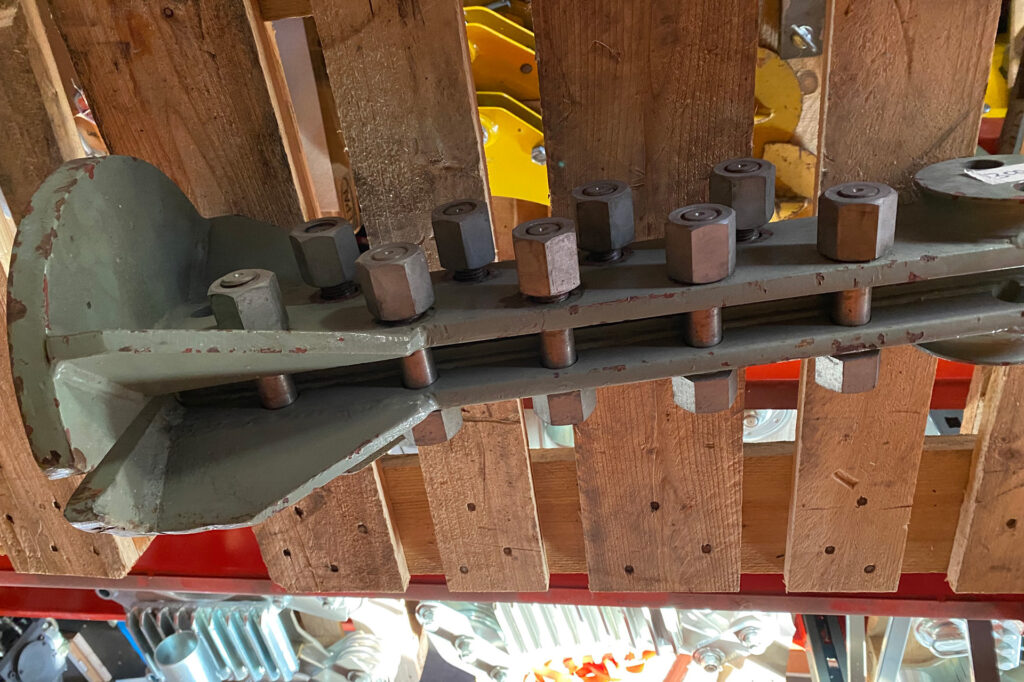

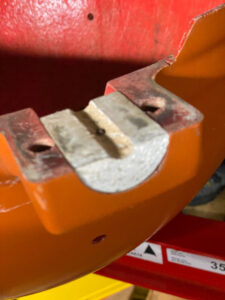

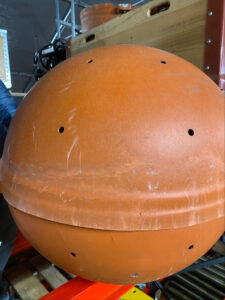

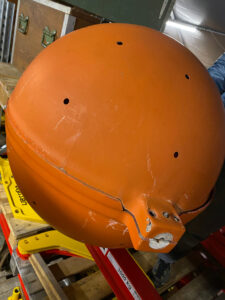

Various suspension cable end buffers
Dimensions not known, works for different cable diameters Prices on request

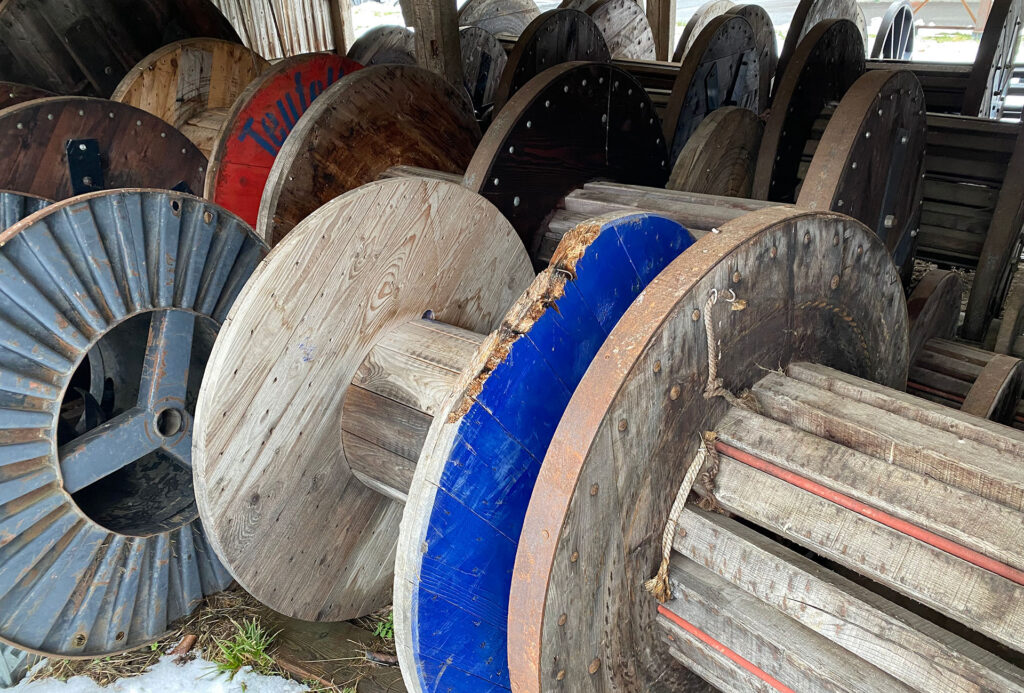

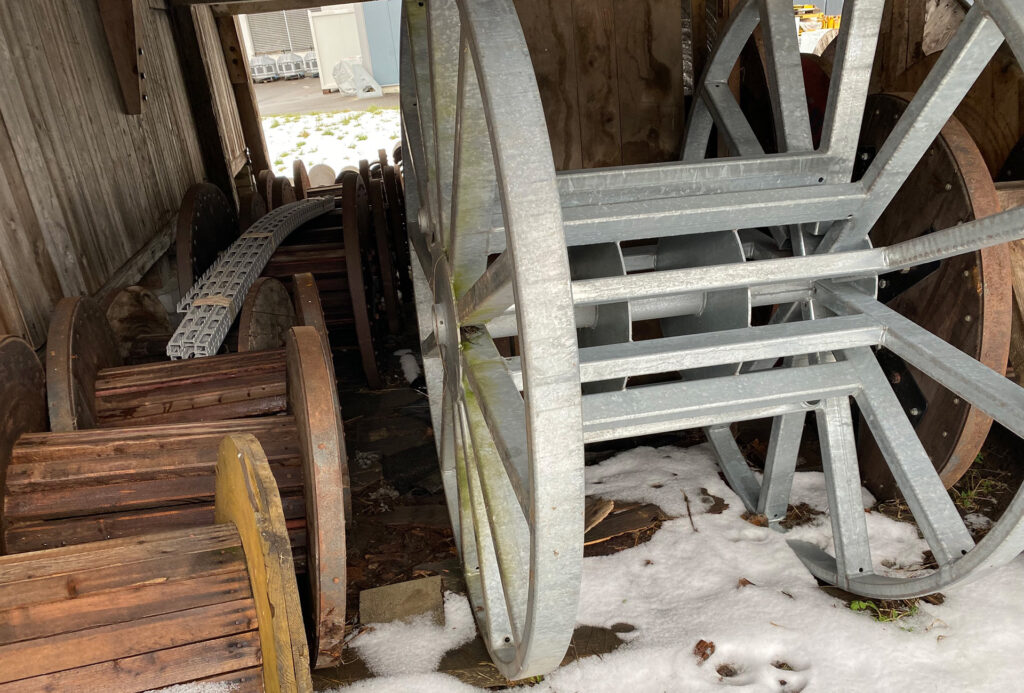

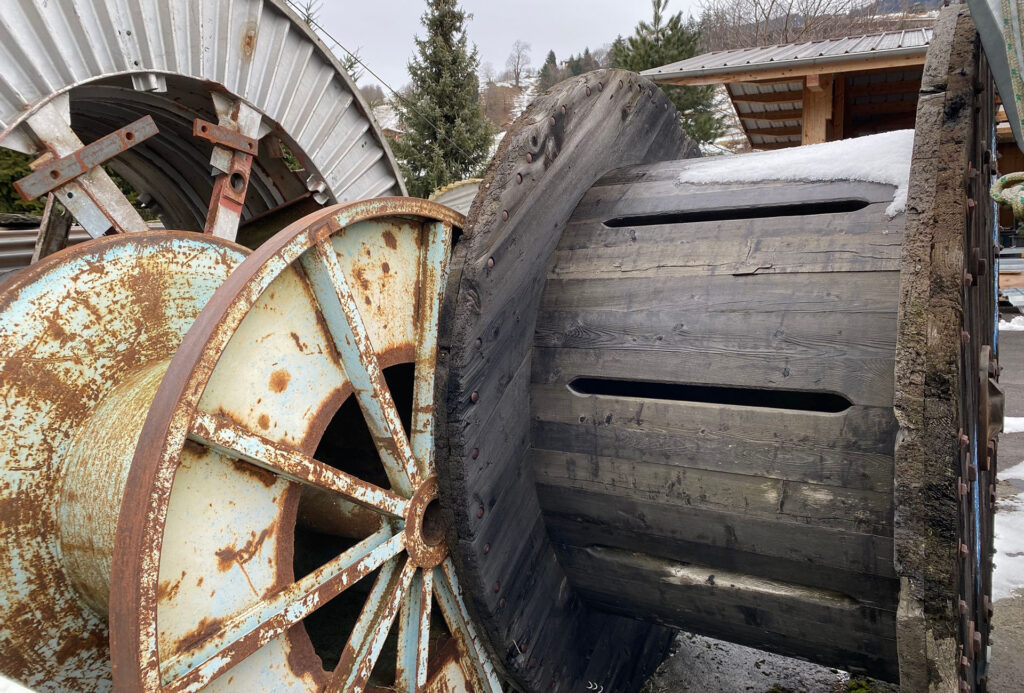

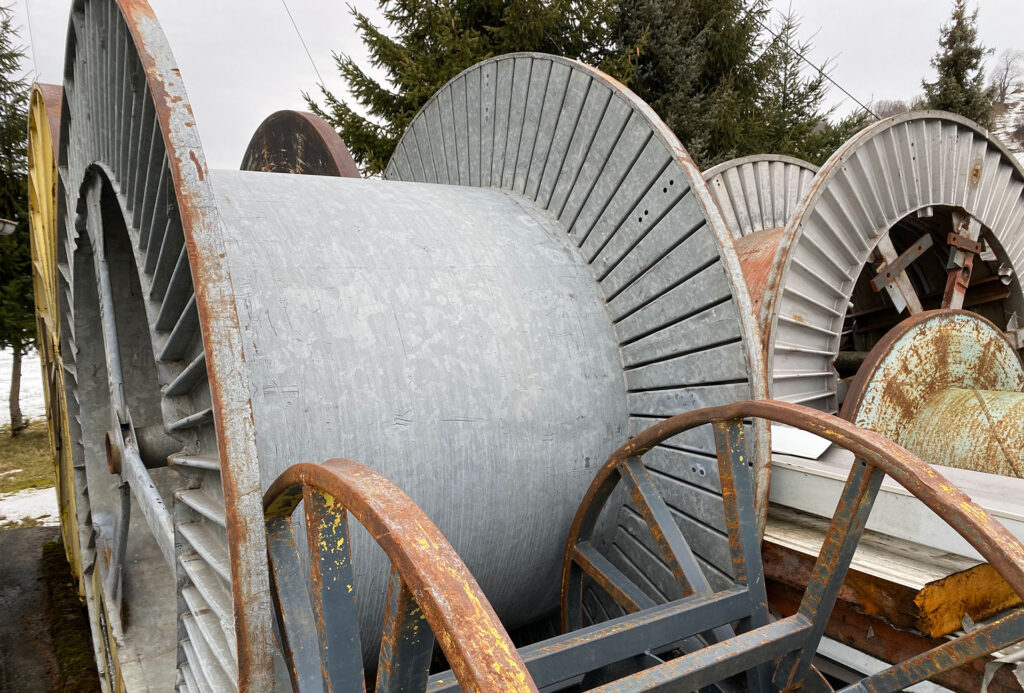

Various Bobins
In various sizes and designs Prices on request

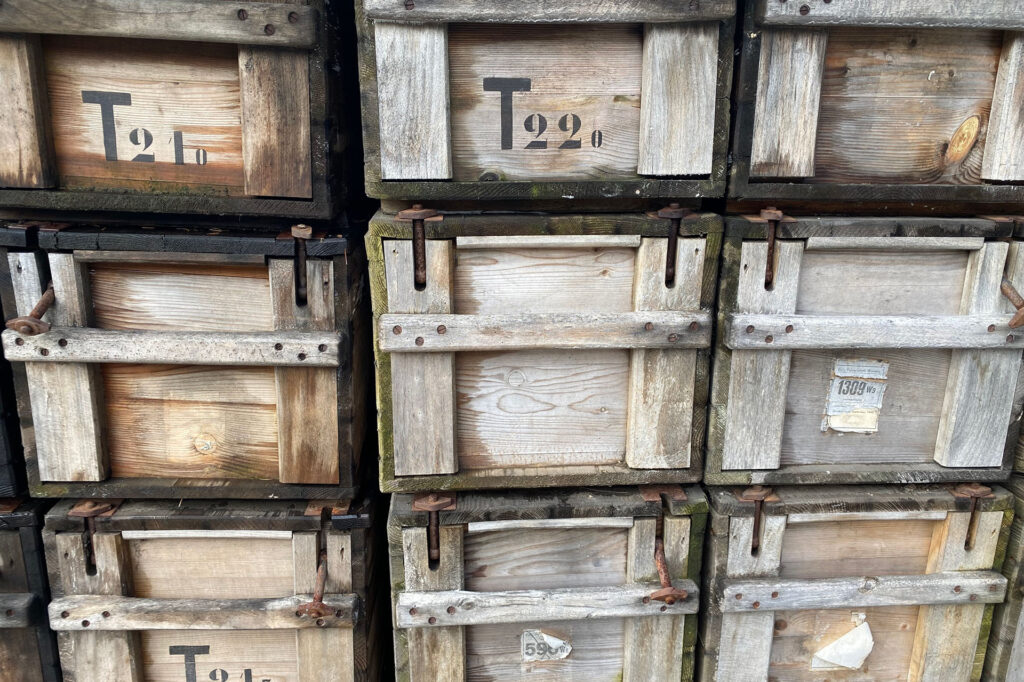

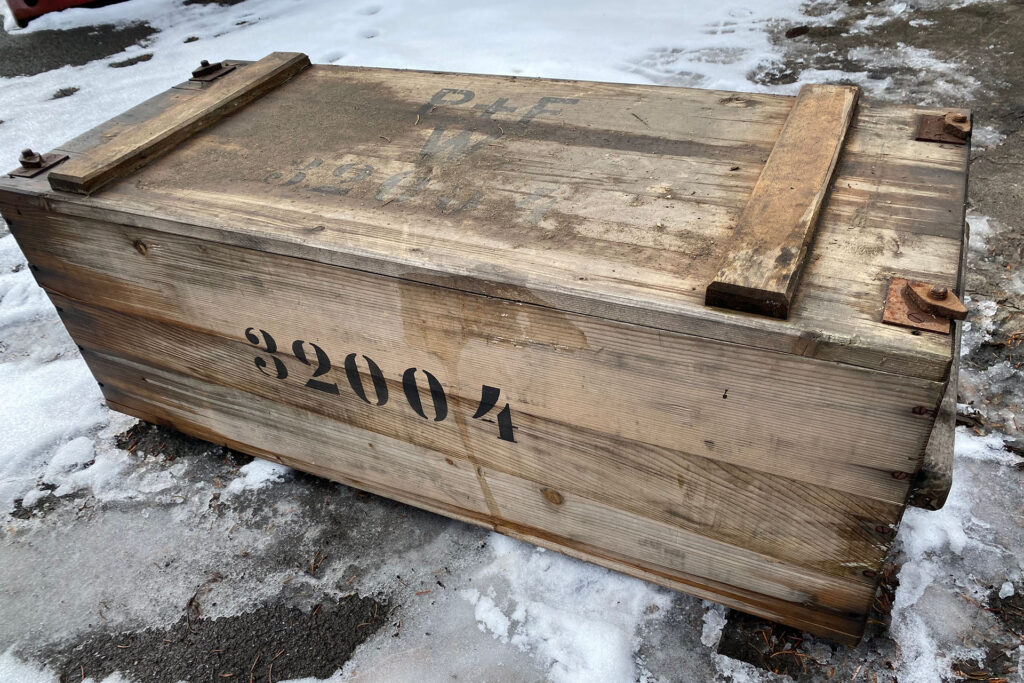

Various boxes (large)
Price: CHF 15.-

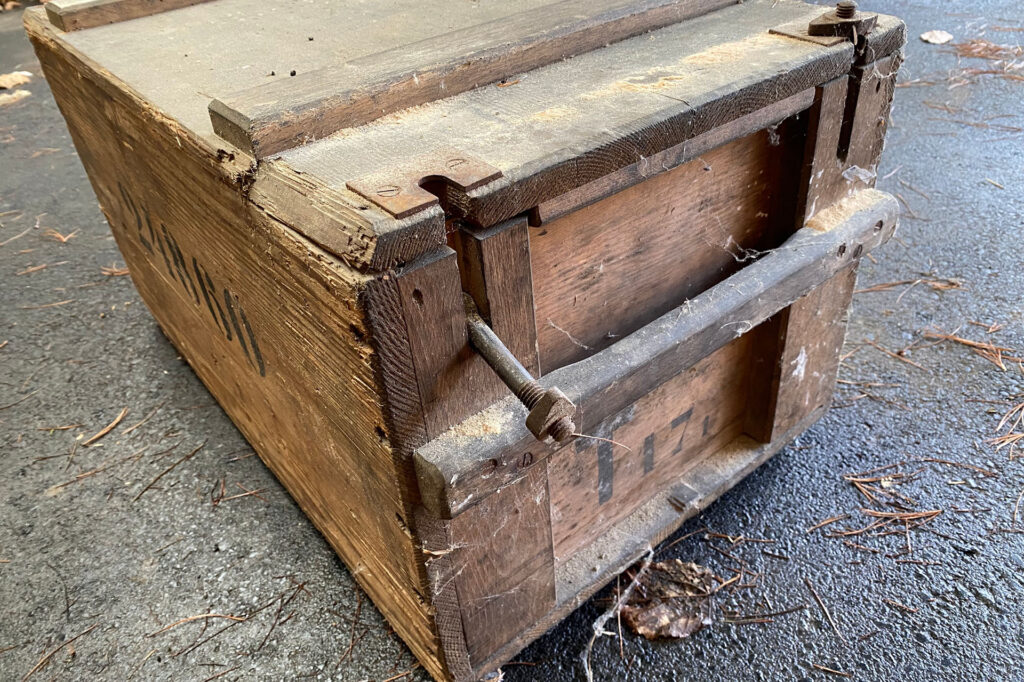

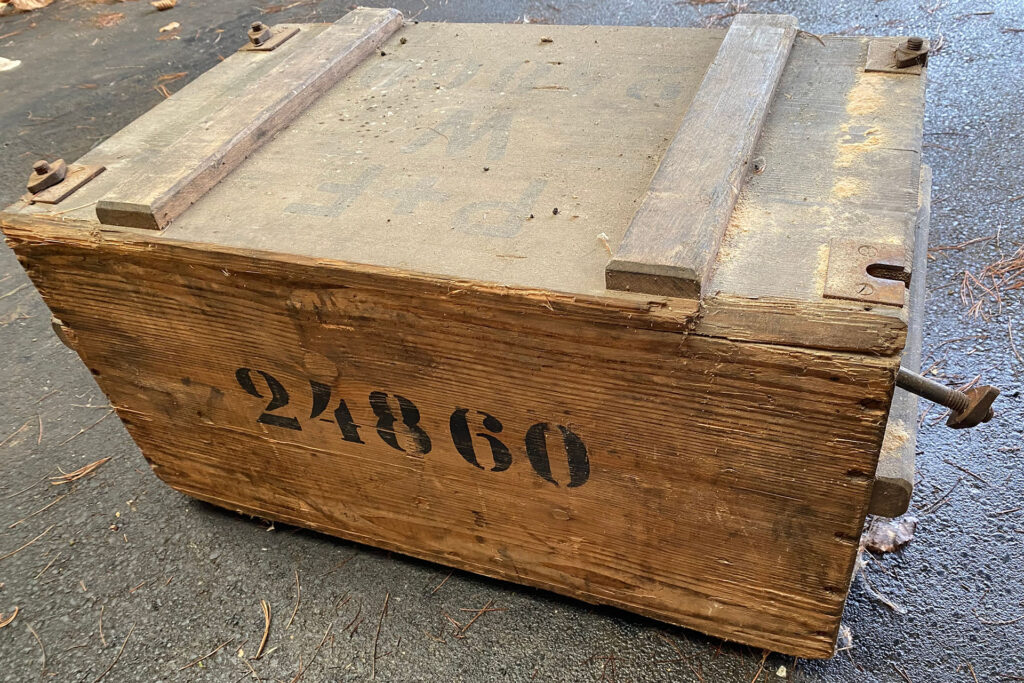

Various boxes (small)
Prices CHF: 10.-
