Used winches

For sales and further information, please call: +41 (0) 33 676 76 76

You can find an overview of used winches below:

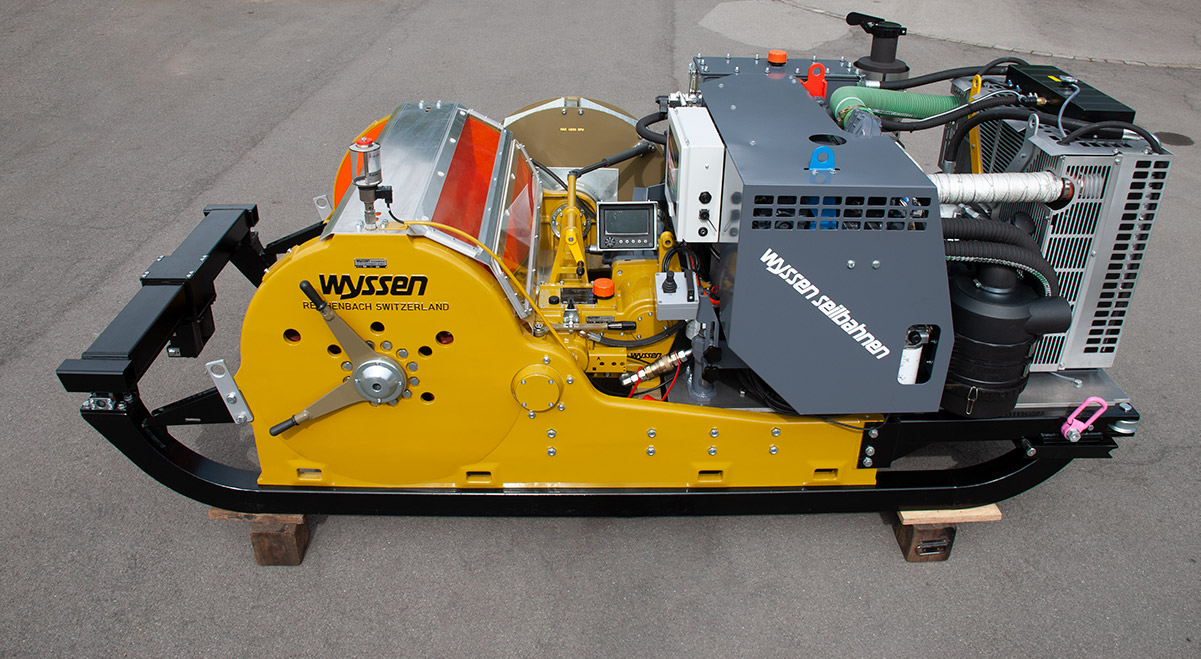

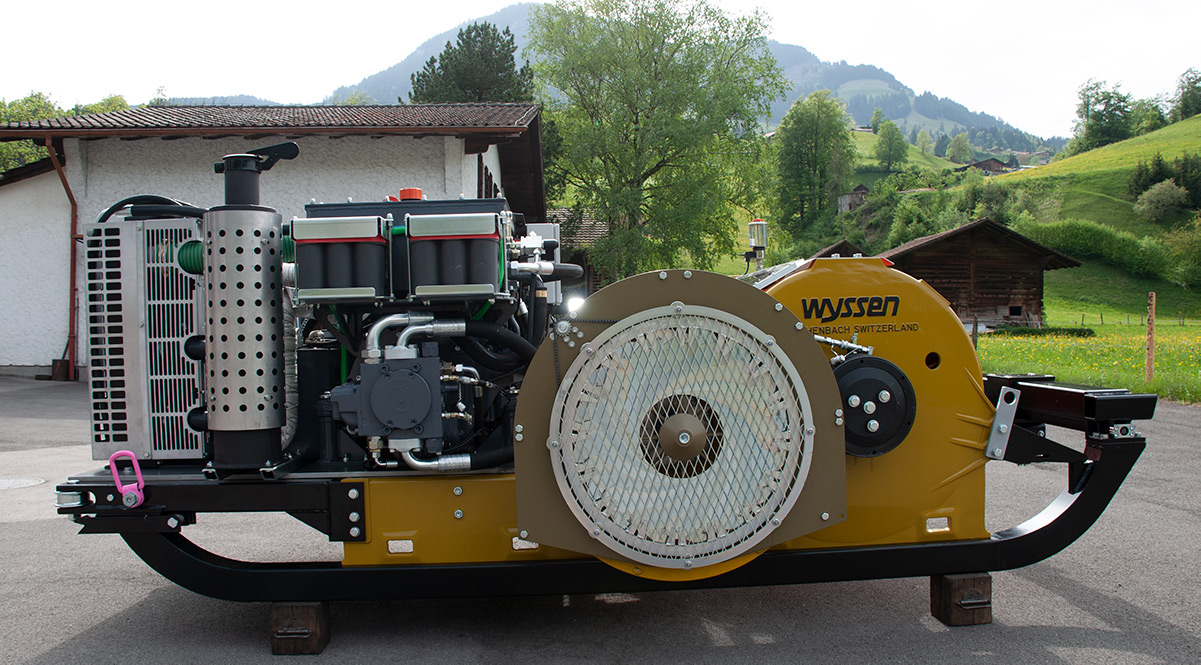

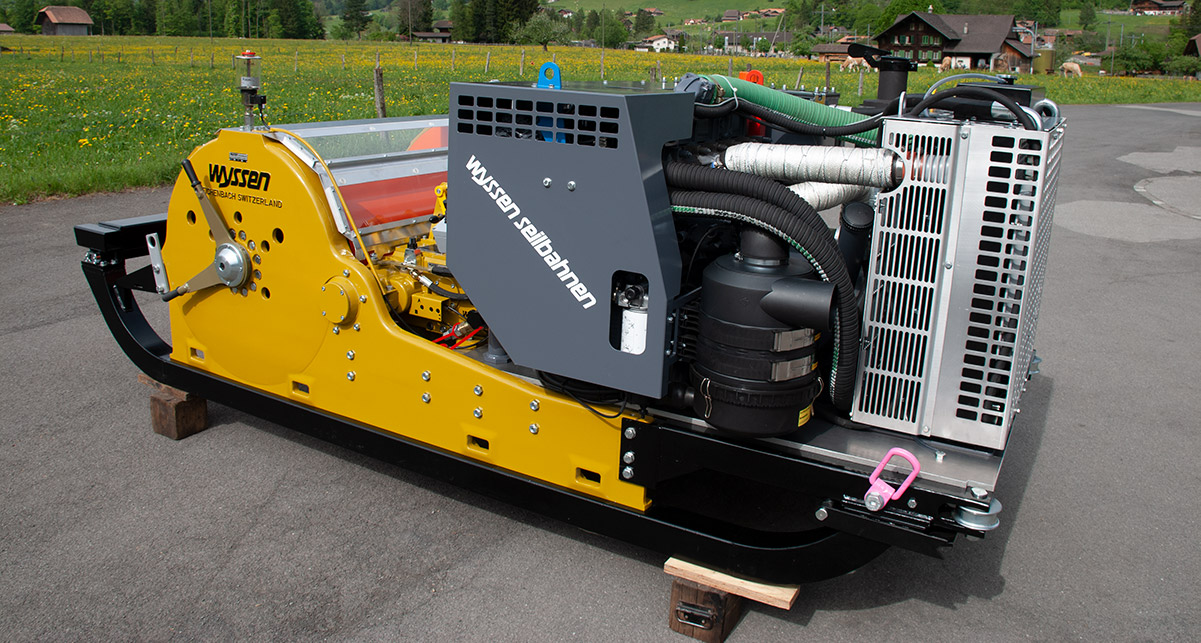

Used winch W-40

w40_gebraucht_2185

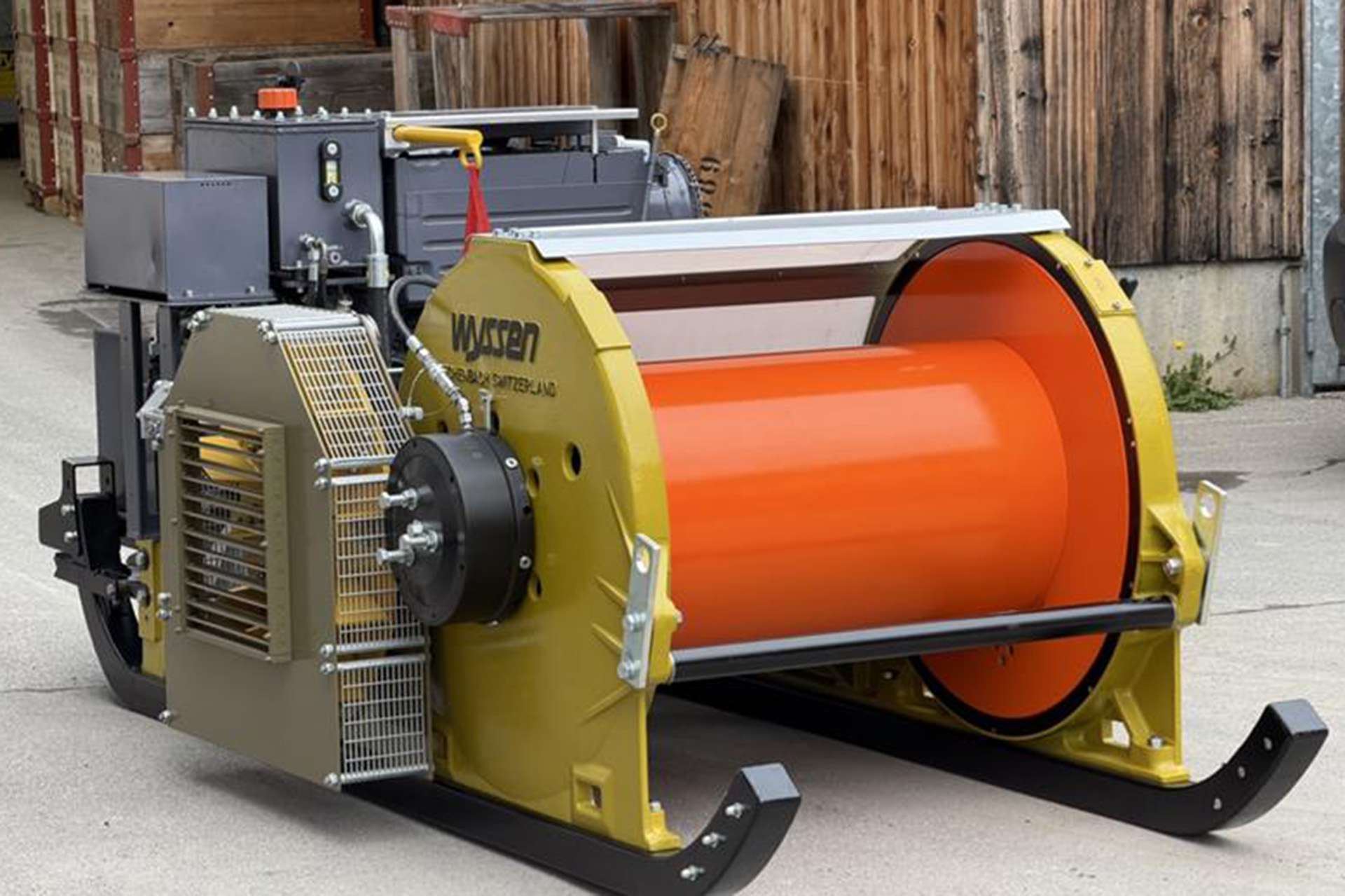

w40_gebraucht_2185_2
w40_gebraucht_2185_3

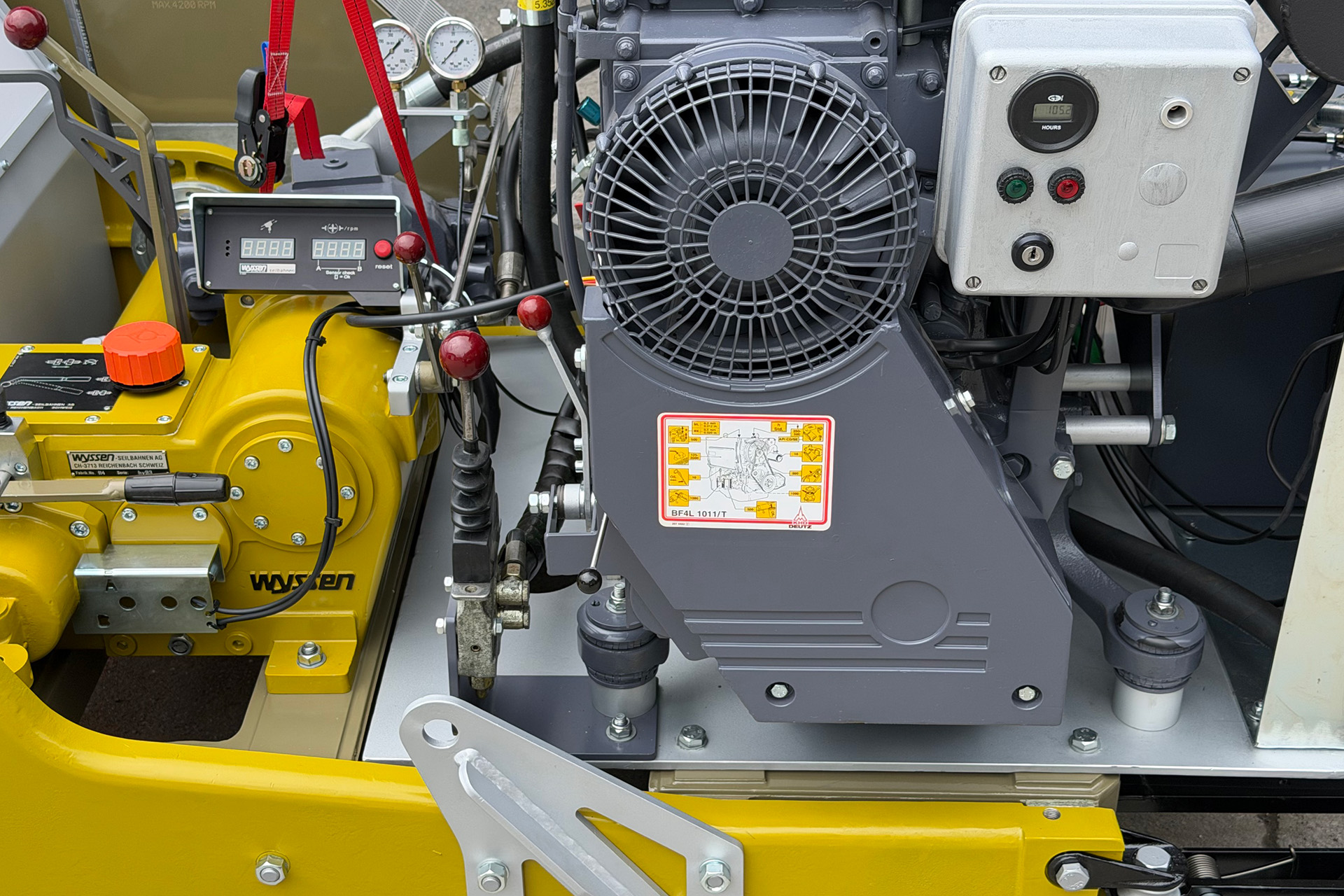

w40_gebraucht_2185_4

Description

  • DEUTZ 4-cylinder turbo diesel engine / 54 kW (74 hp) at 2,600 rpm
  • Air-cooled, electric starter, hydrostatic drive, with A4VG 71 hydraulic pump and 6VM 160 hydraulic motor, infinitely variable forward and reverse speed
  • with additional automatic regulation of tractive force and speed to the engine output
  • 7 gear variants for the pulling force and speed are available
  • max. pulling force (standard model): 1 E 3,423 to 5,478 kg
  • max. Velocity, standard version: 1 E 5.295 to 8.472 m/s (unloaded)
  • Wind vane shaft
  • Internal drum brake
  • Cable drum, 476 mm diameter, for 2,030 m of cable capacity / haul rope, 11 mm diameter
  • Total weight of the winch without cable: 1,680 kg

Inclusive:

  • 1 pc El. Distance and air brake tachometer
  • 1 pc drip tray on the side panel
  • 1 flexible exhaust extension
  • 1 toolbox for operations and maintenance
  • 1 pc Operating instructions and spare parts list
  • MARS Adjustable Air Brake - Used

Technical data

Factory No. 2185
Condition Used, in very good condition, fully refurbished
Notes - including repainting
- Includes hydraulic spring-loaded brake (deadman's brake)
(Without roller support for steering when driving uphill with a winch)

New:

  • New engine and hydraulic components: muffler, oil-air cooler, and all filters and oils
  • New for the transmission: all bearings and shaft seals
  • New to the drum brake: brake shoes replaced with new brake linings and new tension springs, new bearings and shaft seals

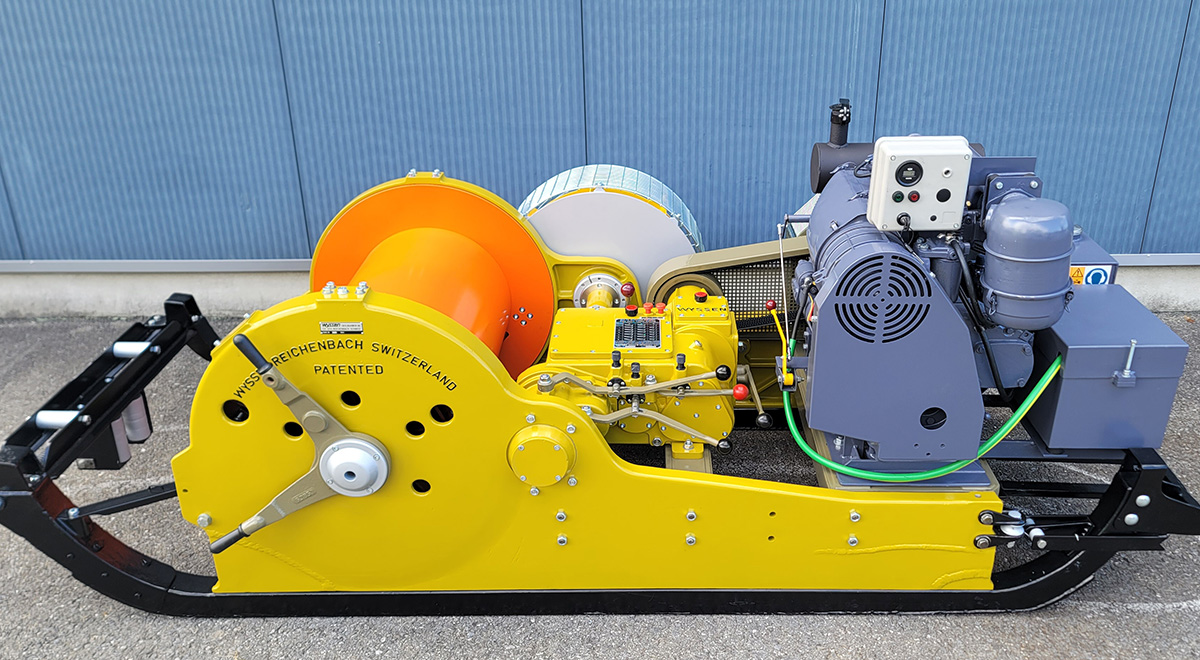

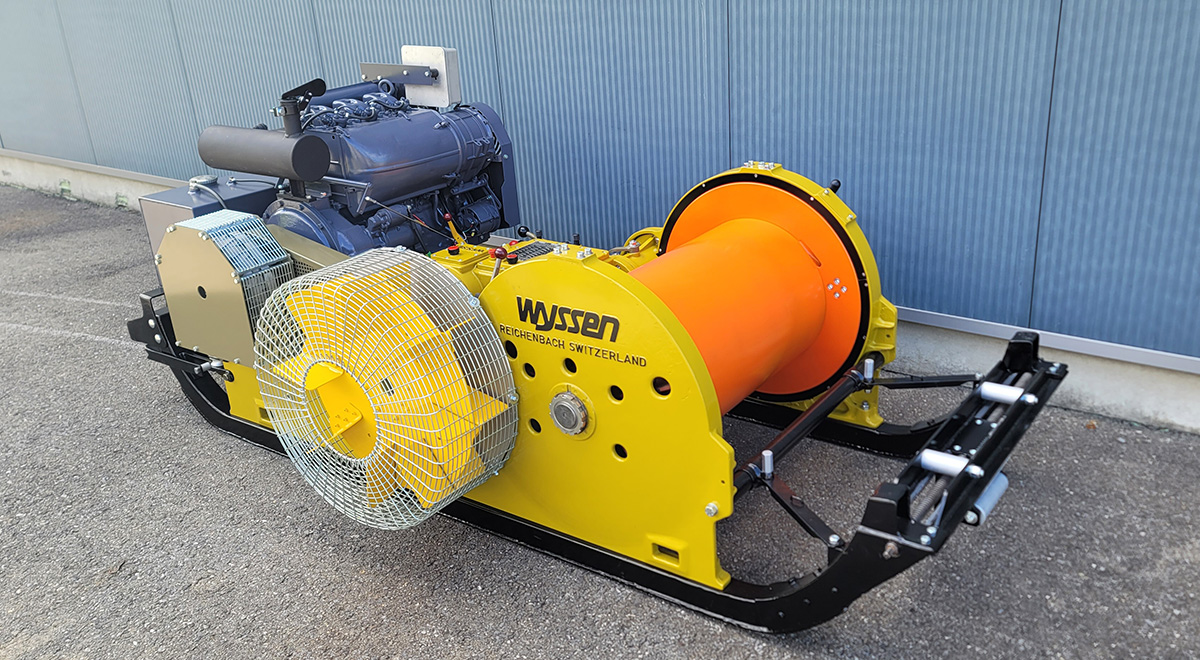

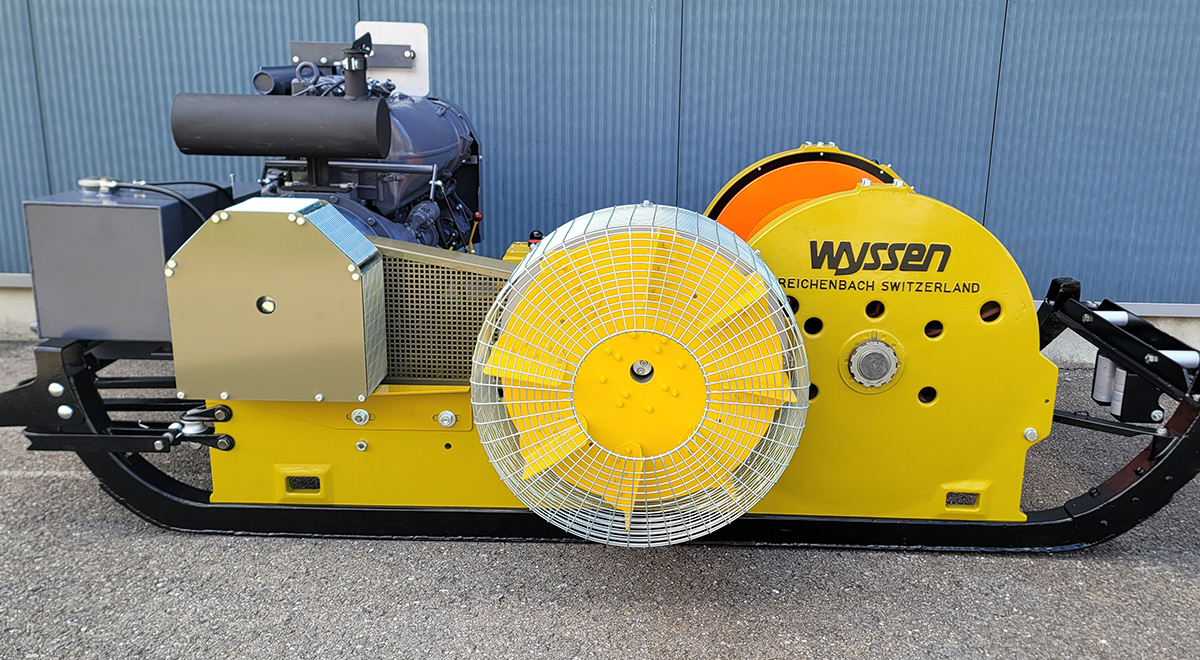

Used W-30 winch

Gebrauchte Seilwinde W30
Gebrauchte Seilwinde W30_2
Gebrauchte Seilwinde W30_3

Description

  • MWM Diesel Engine D 328-3, 3-cylinder, 31 kW / 42 hp / 2,500 rpm, 6-speed reverse gearbox, Venus air brake with protective grille
  • Max. Pulling force: 5 t (empty drum) / 3.6 t (full drum)
  • Speed 0.65–5.9 m/s
  • Cable capacity (haul rope): 11 mm diameter / 1,338 m
  • Drum diameter: 474 mm

Inclusive:

  • 1 pc Turbokupplung Typ ZQ 40
  • 1 electric speedometer with distance and air brake indicators
  • 1 drip tray on the side panel
  • 1 flexible exhaust extension
  • 1 toolbox for operations and maintenance
  • 1 copy of the operating instructions and spare parts list

Technical data

Factory No. 2389
Condition in good condition
Notes Complete overhaul in 2022, including repainting of all parts individually

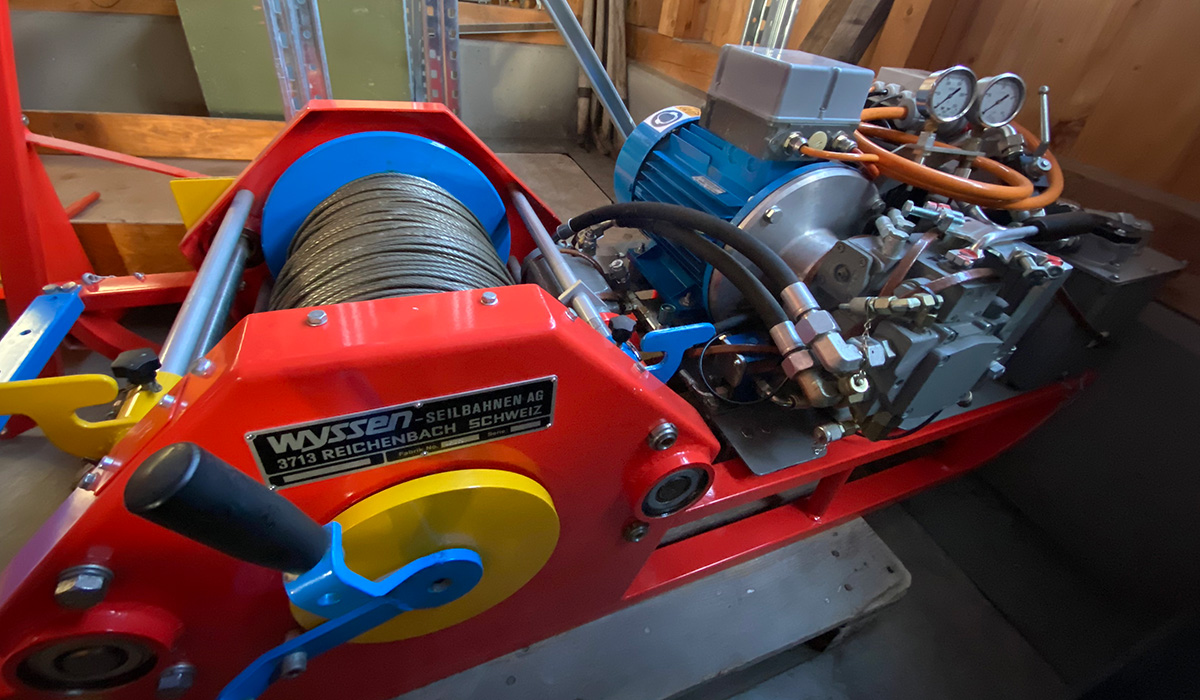

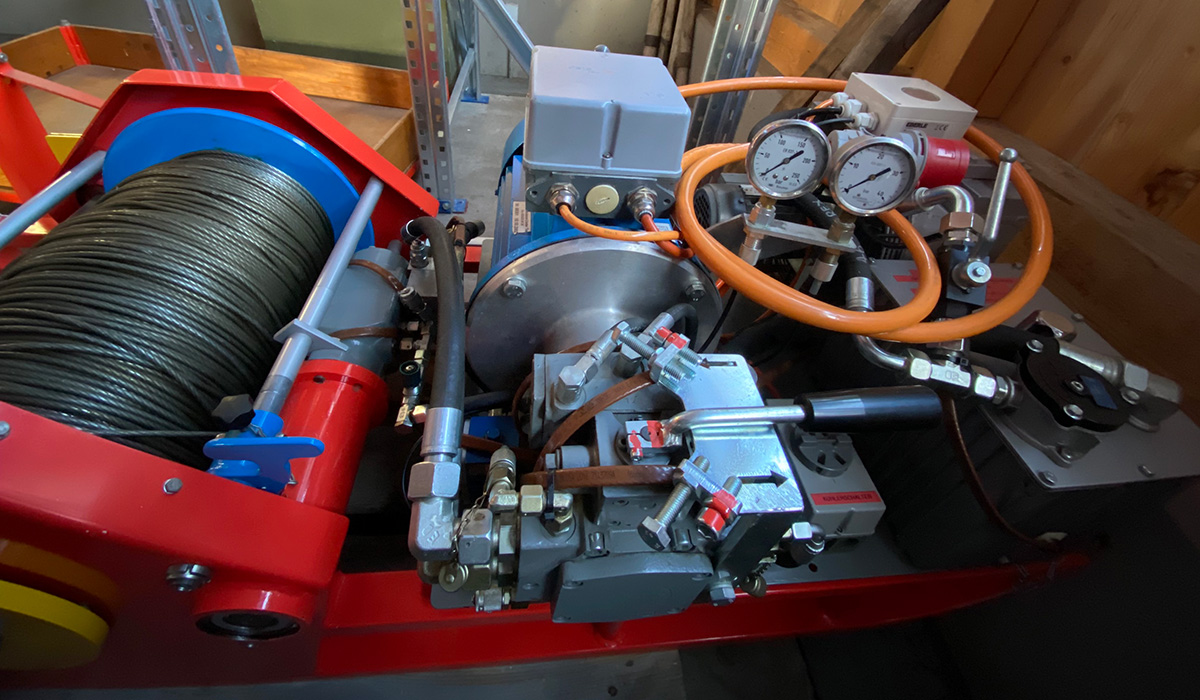

Used winch W-10

Gebrauchte Seilwinde W10
Gebrauchte Seilwinde W10_2

Description

  • Electric motor 3X400V 50Hz 7.5 kW
  • Hydrostatic transmission, continuously adjustable forwards and backwards
  • Variable displacement pump Rexroth A10VG18EP1D1
  • Rexroth pump mounted on the electric motor
  • Hydraulic motor with integrated multi-disk brake
  • Pulling force 1,800 / 1,169 kg
  • Speed 0.51 / 0.78 m/sec (HY motor type 160)
  • Double-disk brake on the drum
  • Cable drum ø 220 mm
  • Weight without cable: approx. 350 kg
  • Tool box for the operation and maintenance of the machine
  • User Manual

(without air brakes)

Technical data

Factory No. 46.060
Condition very good, almost as good as new (without cable)
Notes Occasion with total overhaul and repainting, then briefly used once, still looks very nice
